pitted blade

Post by just bob »

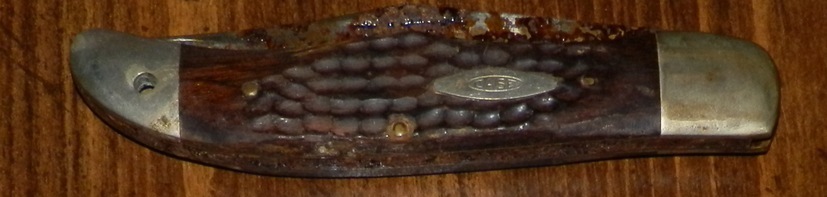

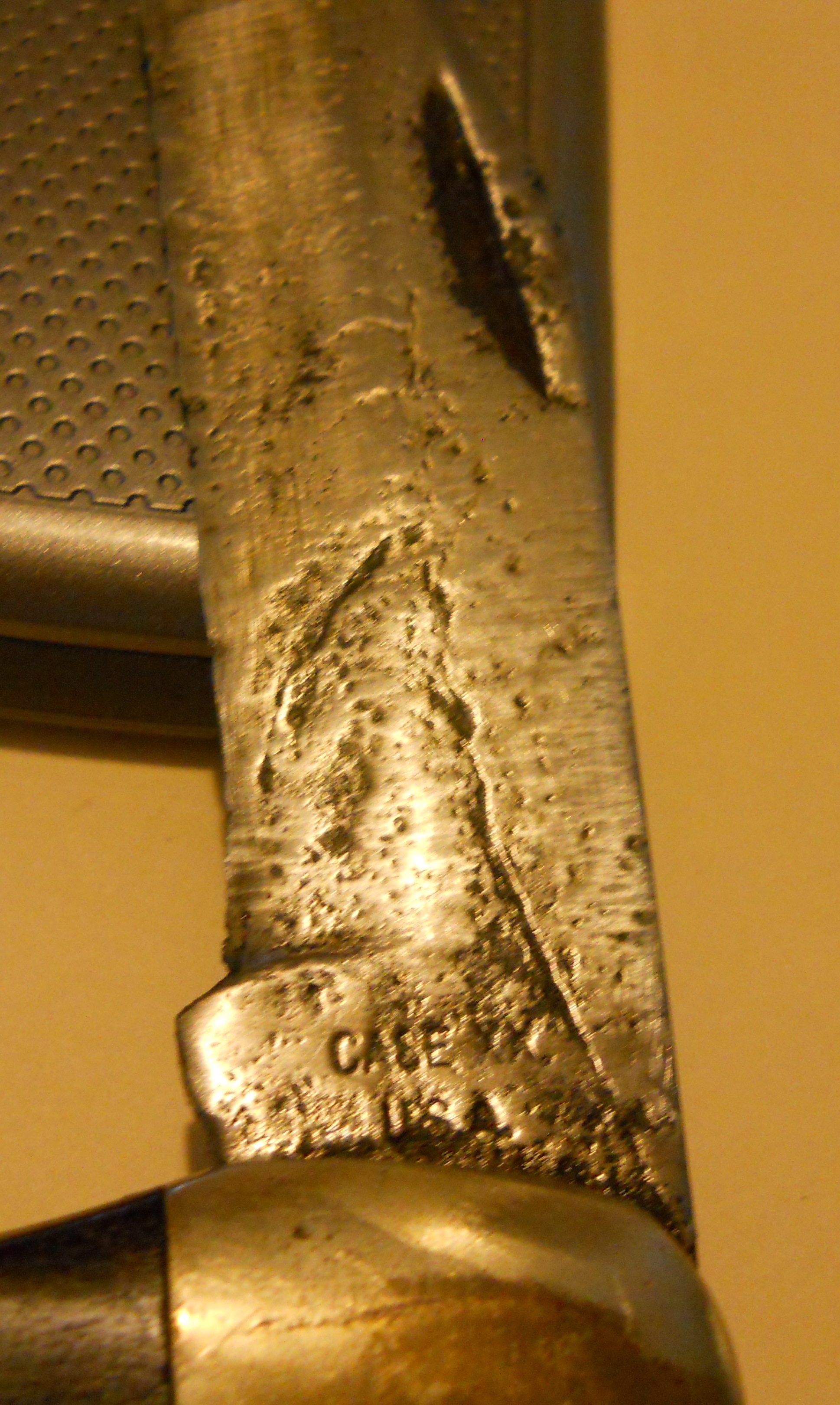

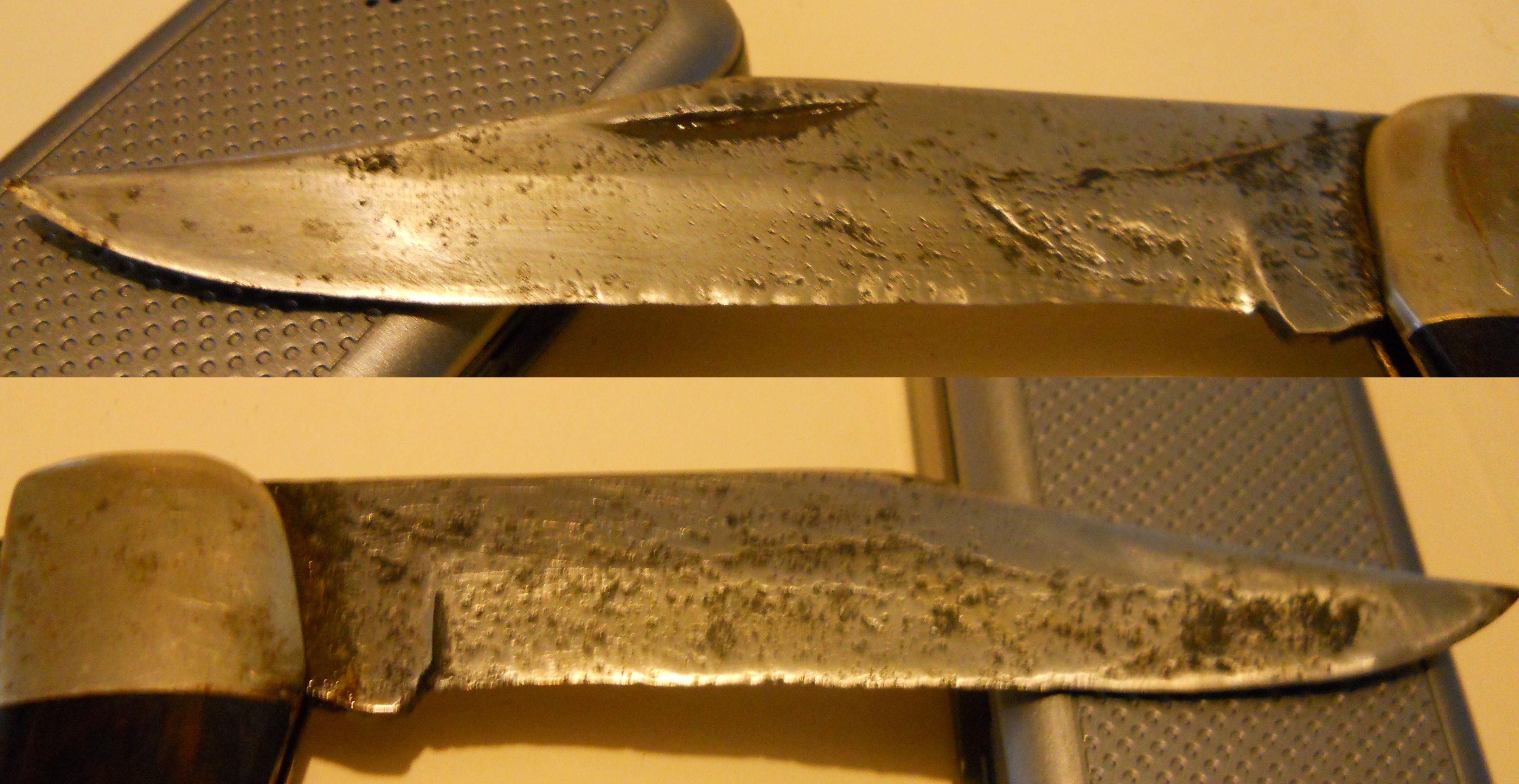

I actually bought this knife and it was welded shut with rust. Let it soak overnight in linseed oil and then began to tap and pry on it until the blade opened. I have messed with it only a little bit and the blade will snap shut. So how to get the majority of the pits out? My plan is to break the blade out, lay it flat, and then use the Dremel and get the deeper ones and then go to the sand paper in courser to finer grits. Is this the best option or should I go another route? Your comments are appreciated.
Attachments
pit 4.JPG
“The world is changed by your example, not by your opinion.” (Paulo Coelho)

Men make plans and God laughs

Better to remain silent and be thought a fool than to speak and to remove all doubt.
User avatar
TripleF
Silver Tier
Silver Tier
Posts: 19226
Joined: Mon Feb 14, 2011 3:42 pm
Location: West Central FL
Contact:

Re: pitted blade

Post by TripleF »

WOWZUH! All I can say, is I look forward to the completion.
SCOTT
HOME OF THE BRAVE! (not the scarety cats)
https://www.allaboutpocketknives.com/catalog/triplef
Colonial Knife Company History ebook:
https://gumroad.com/l/ZLDb
User avatar
orvet
Gold Tier
Gold Tier
Posts: 19543
Joined: Tue May 16, 2006 6:23 am
Location: Willamette Valley, Oregon

Re: pitted blade

Post by orvet »

If you have a random orbital sander I would suggest using it with 220 or 320 grit wet or dry sandpaper with some oil (like WD40) on the paper. The problem with the Dremel is that it can dig a groove in the blade that is difficult to get out.

You may never get all the pits out, but you can certainly get the shallower ones out and make the big ones smaller.
Dale
AAPK Administrator

Please visit my AAPK store: www.allaboutpocketknives.com/orvet

Job 13:15

"Buy more ammo!" - Johnnie Fain
“Evil is Powerless If The Good are Unafraid.” – Ronald Reagan
User avatar
glennbad
Gold Tier
Gold Tier
Posts: 7807
Joined: Mon May 15, 2006 11:13 am
Location: NH

Re: pitted blade

Post by glennbad »

Yeah, what Dale said.

You need a flat surface for sanding, otherwise you will get ripples, hills, and valleys.

Even with a substantial blade like that, I am worried that to get everything off, you are going to have to remove ALOT of metal to get to smooth.

Regardless, I am looking forward to seeing the completed project. ::tu::

Glenn
User avatar
Elvis
Posts: 2185
Joined: Tue Dec 22, 2009 2:22 pm
Location: Cincinnati, Ohio USA

Re: pitted blade

Post by Elvis »

Dale is right. Dremels are generally bad news as they leave grooves that are hard to get rid of when it comes to any final finish. PM me your address. I've got a couple of blades that are in slightly better condition that came from one I stole the backsprings from a while back. Looks like they might be easier to deal with.
User avatar
just bob
Posts: 2726
Joined: Mon Apr 25, 2011 7:05 pm

Re: pitted blade

Post by just bob »

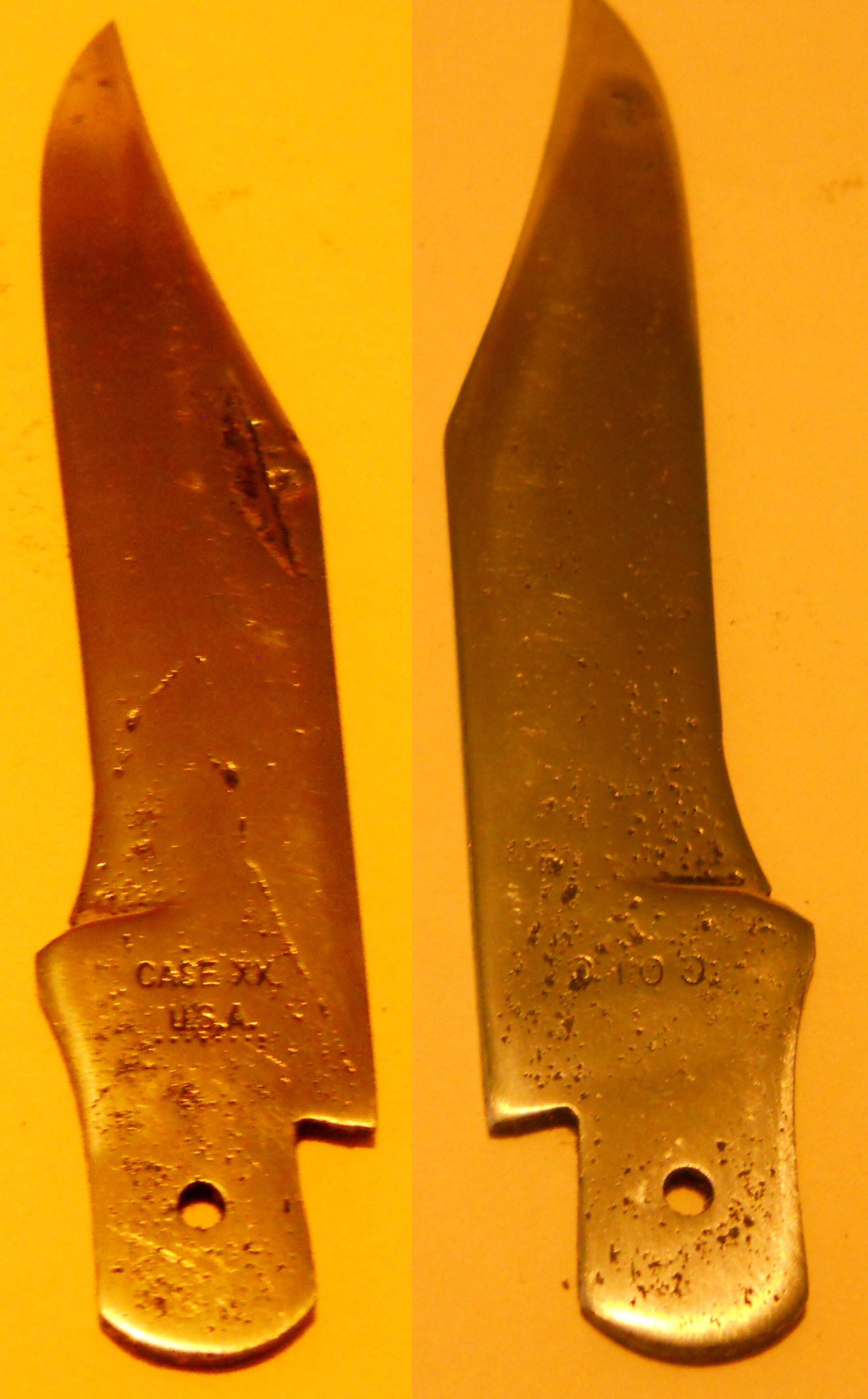

I'll update this a bit. I have spent about 2 hrs on the blade. I did use the palm sander and 320 grit. I think I'm to the point where the pits are so deep they may have to be dug out individually to get rid of them. I know the Dremel will leave swales or divots so I guess the best option is to leave it as is and button it back down. If it returns to its natural state with tarnish many of the smaller pits will be far less obvious. Is there an effective way to tarnish the blade. Any comments or suggestions? They are appreciated.
Attachments
“The world is changed by your example, not by your opinion.” (Paulo Coelho)

Men make plans and God laughs

Better to remain silent and be thought a fool than to speak and to remove all doubt.
User avatar
orvet
Gold Tier
Gold Tier
Posts: 19543
Joined: Tue May 16, 2006 6:23 am
Location: Willamette Valley, Oregon

Re: pitted blade

Post by orvet »

You can use lemon juice, mustard or vinegar, but it makes it pretty evenly dark.
It looks more natural sometimes if you just cut some apples & other fruit and don’t wipe it down when finished. The result will probably be less even, but more like a knife usually darkens.
Dale
AAPK Administrator

Please visit my AAPK store: www.allaboutpocketknives.com/orvet

Job 13:15

"Buy more ammo!" - Johnnie Fain
“Evil is Powerless If The Good are Unafraid.” – Ronald Reagan
