Joseph Rogers Knife. What goes in the hole?

A place to ask or answer knife related questions.
Post Reply
User avatar
Teryjaki
Posts: 14
Joined: Sat May 14, 2022 7:19 pm
Location: So. California
Contact:

Joseph Rogers Knife. What goes in the hole?

Post by Teryjaki » Mon Nov 14, 2022 9:44 pm

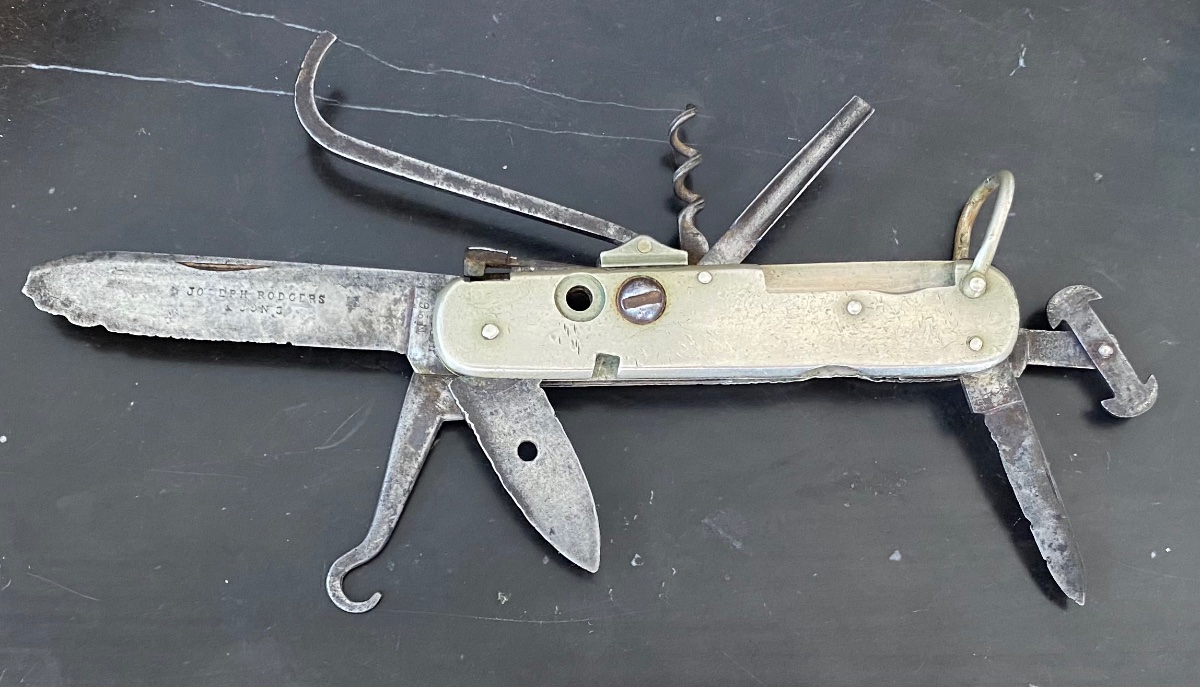

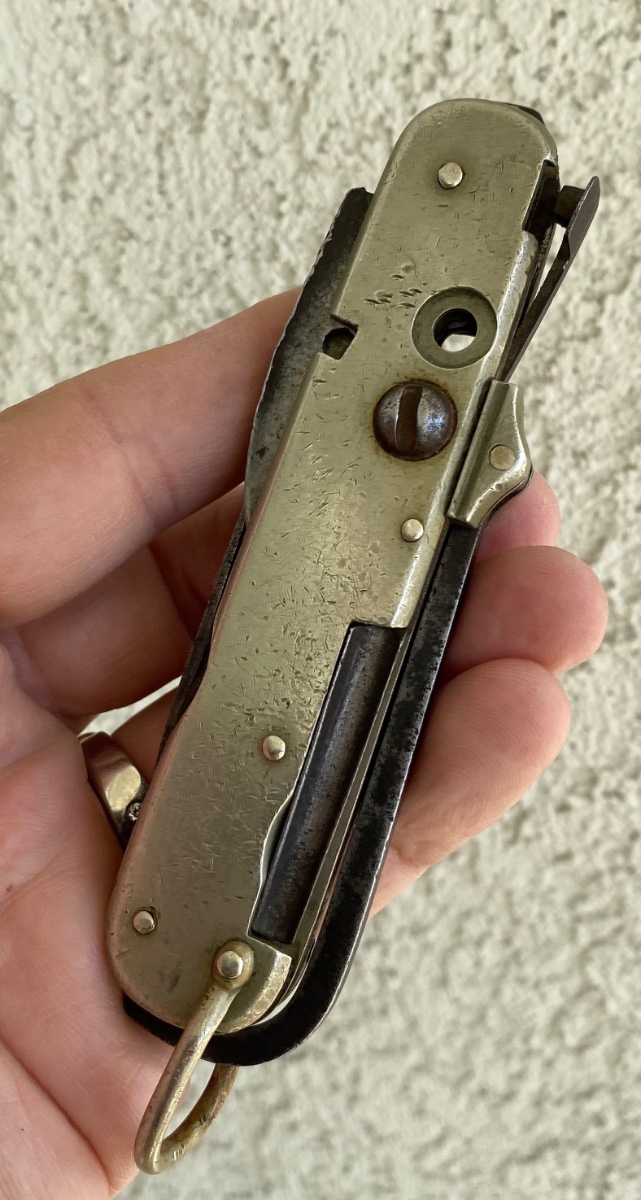

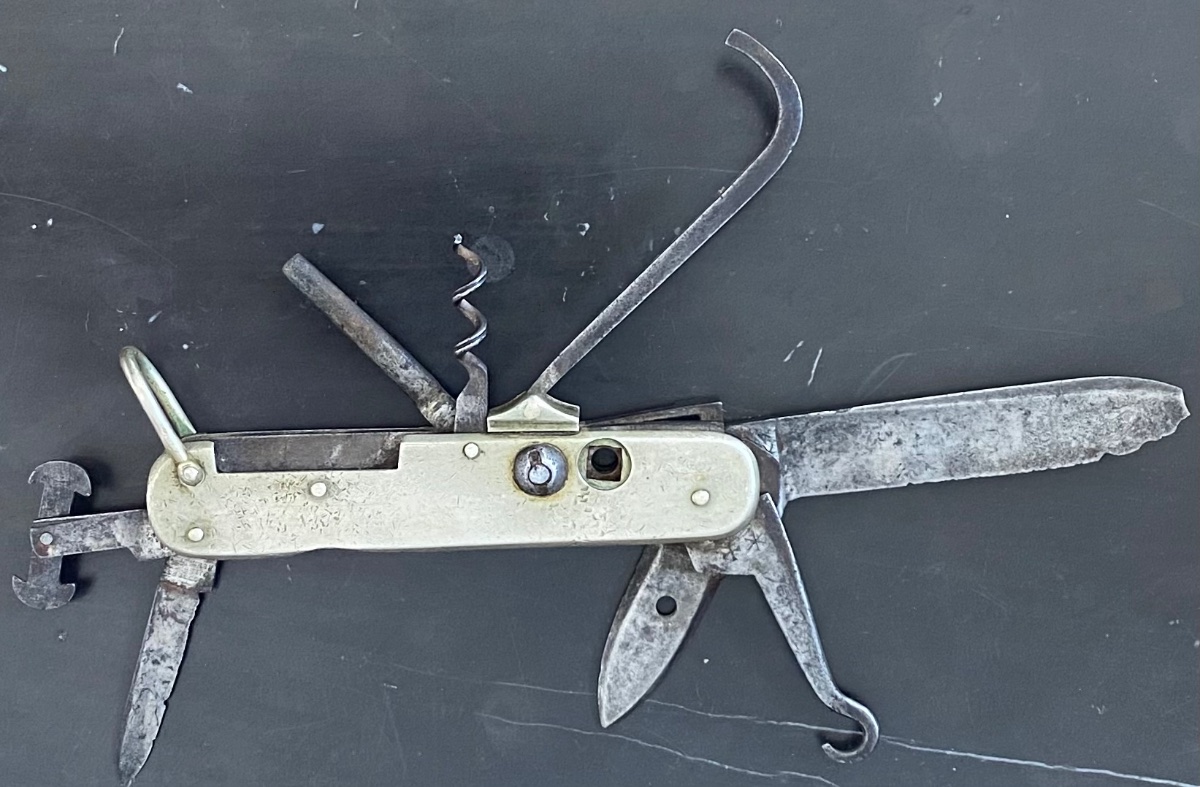

Another one of last weekend’s buys. Joseph Rogers & Sons. I thought it’s perhaps it’s an equestrian knife but what do you think the hole in the scales are for? It isn’t threaded. Doesn’t seem to cut or hold anything. There’s a couple of bizarre gadgets on this that need unraveling. The top latch / lever thing is under spring tension but doesn’t seem to do anything.
Attachments

User avatar
Ridgegrass
Silver Tier
Silver Tier
Posts: 3263
Joined: Sun Aug 30, 2020 2:04 pm
Location: Ocean City, MD
Contact:

Re: Joseph Rogers Knife. What goes in the hole?

Post by Ridgegrass » Mon Nov 14, 2022 10:14 pm

Not sure what goes there but the can opener is missing the stud that fits in the scale slot.
is that a lock-back mechanism at the base of the main blade? Cool, 16/12 ga. shell extractors. It's a different combination of blades than a normal horse knife. Button hook, manicure ??? Neat one! J.O'.

User avatar
treefarmer
Gold Tier
Gold Tier
Posts: 11637
Joined: Sun Oct 04, 2009 6:53 am
Location: Florida Panhandle(LA-Lower Alabama)

Re: Joseph Rogers Knife. What goes in the hole?

Post by treefarmer » Mon Nov 14, 2022 10:16 pm

Teryjaki,
That's an interesting old knife! There are several things I don't understand about it, too! ::shrug::
What is the device on the shackle end that looks like a doubled bitted ax ?
The holes in the handle, one side being square, would hold the head of a small carriage bolt but for what reason. And then there is the hole in the small spear point blade?
One would think the top latch/lever would be to lock one or more of the blades, either open or closed.
Can you provide another picture looking directly at the back knife, the side the hoof pick, gouge and corkscrew are sprouting from?
Hopefully some one will come along and know all about your find.
Treefarmer

I see Ridgegrass has cleared up the ax lookin' device, a shell puller. ::tu::

A GUN IN THE HAND IS BETTER THAN A COP ON THE PHONE.

Gunsil
Posts: 2391
Joined: Fri Feb 28, 2014 5:25 pm
Location: Lower Hudson River valley, N.Y.

Re: Joseph Rogers Knife. What goes in the hole?

Post by Gunsil » Mon Nov 14, 2022 10:17 pm

That is a cool old horseman's knife. I have seen others and I believe there was another screw in the hole. Your knife has a can opener (missing a pin), a button hook, small gouge, hoof pick, and the swivel thing is a shot shell puller, usually for 12 and 16 guage shells.

User avatar
MT-Vessel
Posts: 202
Joined: Sat Nov 18, 2017 11:10 pm
Location: Vancouver Island

Re: Joseph Rogers Knife. What goes in the hole?

Post by MT-Vessel » Mon Nov 14, 2022 10:17 pm

I know it as a Prest-O-lite key. Used for opening early gas valves. ::shrug::
Empty vessels make the most noise...

User avatar
MT-Vessel
Posts: 202
Joined: Sat Nov 18, 2017 11:10 pm
Location: Vancouver Island

Re: Joseph Rogers Knife. What goes in the hole?

Post by MT-Vessel » Mon Nov 14, 2022 10:21 pm

Empty vessels make the most noise...

ea42
Silver Tier
Silver Tier
Posts: 2594
Joined: Tue Oct 17, 2006 8:23 pm
Location: Wallkill, NY

Re: Joseph Rogers Knife. What goes in the hole?

Post by ea42 » Mon Nov 14, 2022 10:38 pm

That's not a presto-lite key. Those bolts ( the one present and the missing one) were spare harness bolts. The inside of the nut was square to lock it in place in that square hole. That model was known as a sportsman knife or campaign knife as it was used quite extensively by the military as well. A number of different companies made them such as George Butler Co, Singleton and Priestman, and W. Morton and Sons, all of Sheffield. The knives were virtually identical.

Eric

User avatar
MT-Vessel
Posts: 202
Joined: Sat Nov 18, 2017 11:10 pm
Location: Vancouver Island

Re: Joseph Rogers Knife. What goes in the hole?

Post by MT-Vessel » Mon Nov 14, 2022 11:03 pm

They say you learn something new everyday… I can stop thinking now ::tu::
Empty vessels make the most noise...

User avatar
FRJ
Gold Tier
Gold Tier
Posts: 14241
Joined: Fri May 14, 2010 1:43 pm

Re: Joseph Rogers Knife. What goes in the hole?

Post by FRJ » Mon Nov 14, 2022 11:46 pm

MT-Vessel wrote:
Mon Nov 14, 2022 11:03 pm
They say you learn something new everyday… I can stop thinking now ::tu::
:lol: :lol: --- Yeah, me too. ::super_happy::

Eric kills it as usual. ::tu::
Joe

User avatar
Teryjaki
Posts: 14
Joined: Sat May 14, 2022 7:19 pm
Location: So. California
Contact:

Re: Joseph Rogers Knife. What goes in the hole?

Post by Teryjaki » Mon Nov 14, 2022 11:57 pm

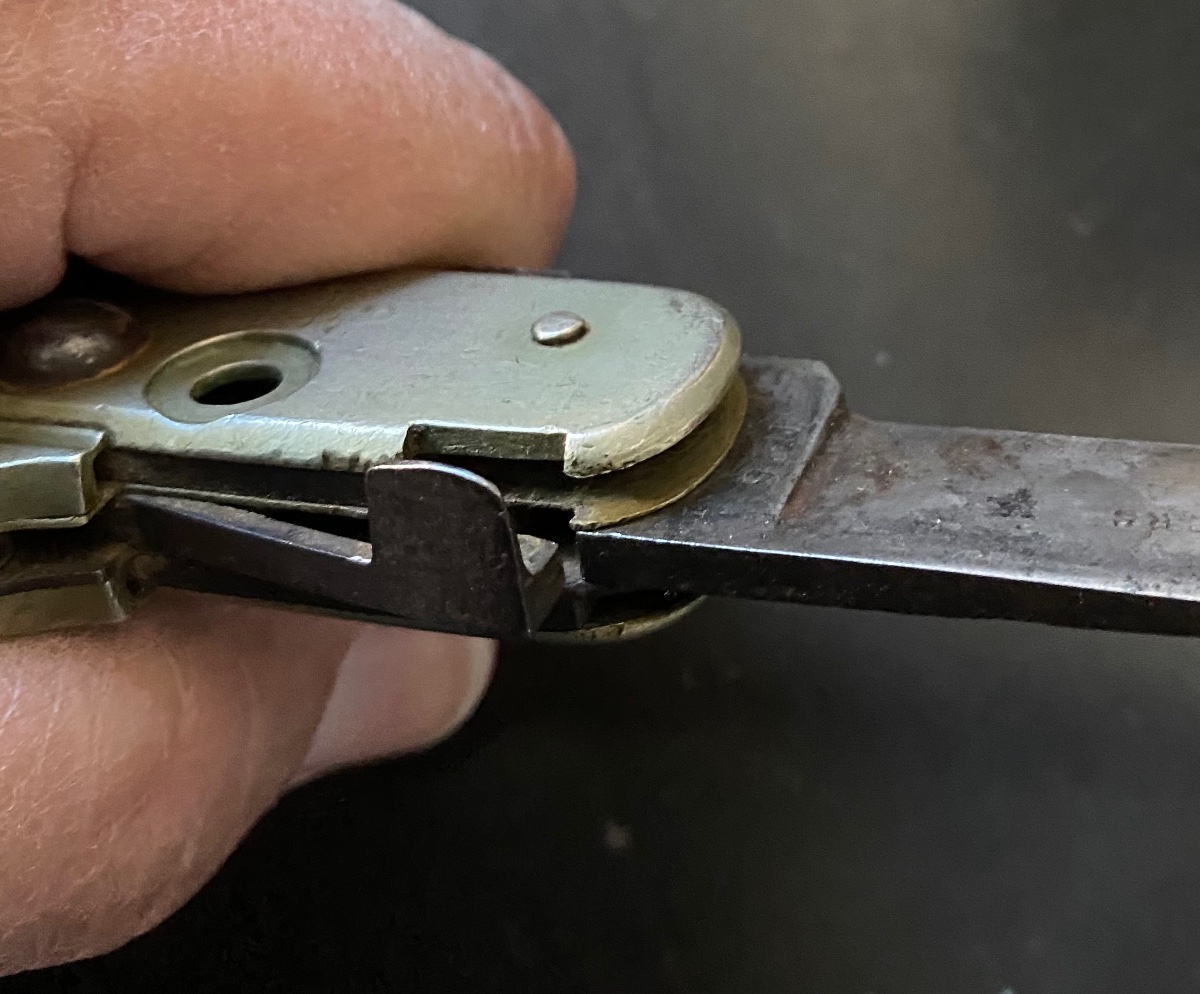

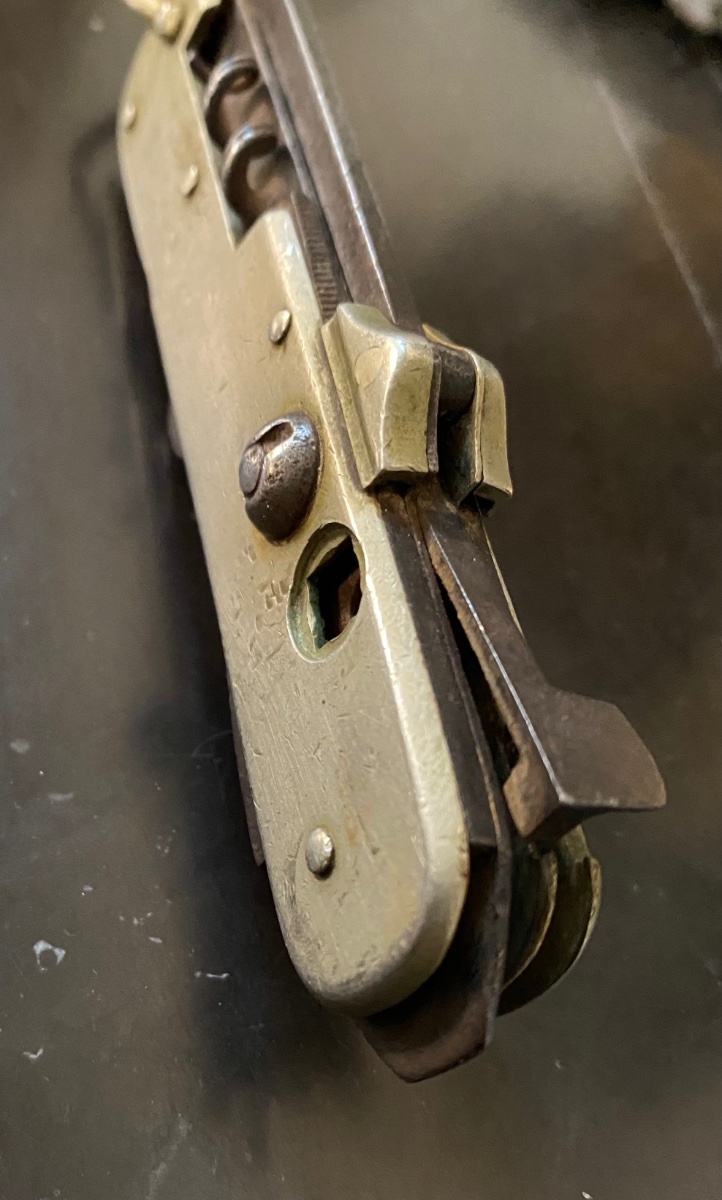

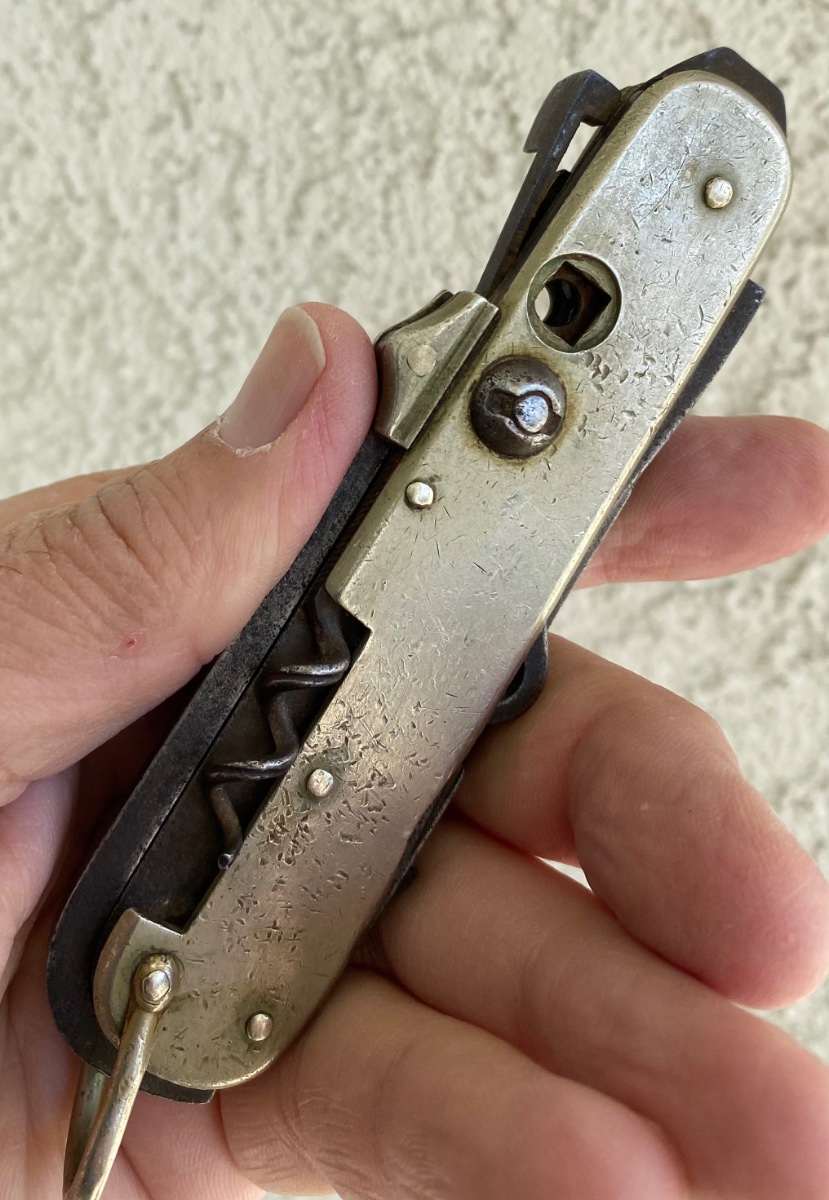

The extra bolts thing is fascinating and I never would have known. It was clear to see the bolt(s) weren’t holding the knife together. After fiddling with it for awhile I see that the press-down device does lock the main blade in place, but for only as long as you’re holding the pusher thing down. It’s a bit over engineered.
Attachments

User avatar
Teryjaki
Posts: 14
Joined: Sat May 14, 2022 7:19 pm
Location: So. California
Contact:

Re: Joseph Rogers Knife. What goes in the hole?

Post by Teryjaki » Tue Nov 15, 2022 12:10 am

So I measured the square hole it’s 3/16”. Which is also the size of a Prestolite valve. I think everyone’s input is spot-on!

User avatar
1967redrider
Gold Tier
Gold Tier
Posts: 12935
Joined: Wed Feb 02, 2011 4:23 pm
Location: Alexandria, VA
Contact:

Re: Joseph Rogers Knife. What goes in the hole?

Post by 1967redrider » Tue Nov 15, 2022 12:39 am

Very cool tools on that knife. Do you think the spear doubles as a screwdriver or was it tipped?
Pocket, fixed, machete, axe, it's all good!

You're going to look awfully silly with that knife sticking out of your @#$. -Clint Eastwood, High Plains Drifter

Froe
Posts: 262
Joined: Tue Feb 14, 2017 3:31 am

Re: Joseph Rogers Knife. What goes in the hole?

Post by Froe » Tue Nov 15, 2022 2:07 am

What would the benefit of the gouge be? Does it have an equestrian use?
Thanks in advance,
Froe

User avatar
Mumbleypeg
Gold Tier
Gold Tier
Posts: 11743
Joined: Fri Apr 18, 2014 1:28 am
Location: Republic of Texas

Re: Joseph Rogers Knife. What goes in the hole?

Post by Mumbleypeg » Tue Nov 15, 2022 3:15 am

Froe wrote:
Tue Nov 15, 2022 2:07 am
What would the benefit of the gouge be? Does it have an equestrian use?
Thanks in advance,
Froe
Cutting (gouging) holes in harness leather.

Ken
Member AKTI, TSRA, NRA.

When the people fear their government, that is tyranny. When government fears the people, that is freedom.

https://www.akti.org/

User avatar
Ridgegrass
Silver Tier
Silver Tier
Posts: 3263
Joined: Sun Aug 30, 2020 2:04 pm
Location: Ocean City, MD
Contact:

Re: Joseph Rogers Knife. What goes in the hole?

Post by Ridgegrass » Tue Nov 15, 2022 1:14 pm

"Over-engineered" = British. (From a former TR-6, TR-4, Austin-Healey, Bonneville, and Matchless owner.) :D J.O'.

beresman
Silver Tier
Silver Tier
Posts: 321
Joined: Fri Jul 24, 2020 7:19 pm
Location: Ohio
Contact:

Re: Joseph Rogers Knife. What goes in the hole?

Post by beresman » Tue Nov 15, 2022 2:24 pm

And here I was gonna suggest that the square hole was a roller skate key...
Brent

User avatar
1967redrider
Gold Tier
Gold Tier
Posts: 12935
Joined: Wed Feb 02, 2011 4:23 pm
Location: Alexandria, VA
Contact:

Re: Joseph Rogers Knife. What goes in the hole?

Post by 1967redrider » Tue Nov 15, 2022 5:26 pm

1967redrider wrote:
Tue Nov 15, 2022 12:39 am
Very cool tools on that knife. Do you think the spear doubles as a screwdriver or was it tipped?

Answered my own question by taking a better look at the pictures. ::facepalm::
Pocket, fixed, machete, axe, it's all good!

You're going to look awfully silly with that knife sticking out of your @#$. -Clint Eastwood, High Plains Drifter

Froe
Posts: 262
Joined: Tue Feb 14, 2017 3:31 am

Re: Joseph Rogers Knife. What goes in the hole?

Post by Froe » Wed Nov 16, 2022 12:05 am

Thanks Ken
Froe

User avatar
Miller Bro's
Gold Tier
Gold Tier
Posts: 11390
Joined: Mon Feb 16, 2009 11:22 pm
Location: Earth

Re: Joseph Rogers Knife. What goes in the hole?

Post by Miller Bro's » Wed Nov 23, 2022 6:21 am

The two bolts, one missing, are called Trace Bolts, for mending traces.

The lock on the master blade is broken, when the blade would be opened the lock should snap in place to lock it in the open position, to close you would lift up on the lock and close the knife blade.

Nice knife ::tu::
AAPK Janitor
369

User avatar
wlf
Gold Tier
Gold Tier
Posts: 4131
Joined: Thu Mar 24, 2011 2:55 am
Location: WV

Re: Joseph Rogers Knife. What goes in the hole?

Post by wlf » Wed Nov 23, 2022 9:28 am

Miller Bro's wrote:
Wed Nov 23, 2022 6:21 am
The two bolts, one missing, are called Trace Bolts, for mending traces.

The lock on the master blade is broken, when the blade would be opened the lock should snap in place to lock it in the open position, to close you would lift up on the lock and close the knife blade.

Nice knife ::tu::
It's been a long time since I heard someone use the term trace lines.

I never harnessed a horse to work, but I was around a lot ,especially when young. My brother in law liked working horses, as did others I've known.
I buy roosters combs and farmers..........................................................jack knives [/b]

May the Father and Son bless
Lyle

Oledadsknives
Posts: 23
Joined: Mon Nov 21, 2022 3:25 pm
Location: Alabama

Re: Joseph Rogers Knife. What goes in the hole?

Post by Oledadsknives » Wed Nov 23, 2022 10:27 pm

Ridgegrass wrote:
Tue Nov 15, 2022 1:14 pm
"Over-engineered" = British. (From a former TR-6, TR-4, Austin-Healey, Bonneville, and Matchless owner.) :D J.O'.
You got that right ridgegrass!
