Higonokami put to the test

Post by #goldpan »

I recently decided to build myself a passive solar room heater out of cardboard, aluminum foil and black paint. Since I decided to be cheap and use cardboard for the entire construction I looked through my accumulation of knives to find one that I have yet to use. And there on the bench already was a Higonokami that I acquired in a POS exchange here AAPK. Immediately I decided that was the knife to use!
So a little background on this little knife. It was made by Motosuke Nagao. Here is a link to a you tube video showing Mr Nagao making one of these knives. https://www.youtube.com/watch?v=xRXNQaT5mA0 Mr. Nagao is a 5th generation knife maker. His family began making these knives in the 1880's. Those interested can find more history here: https://www.higonokami.jp/en/history.html

Okay the passive solar heater being made of mostly cardboard. There are several pieces to cut out. So I set out to cut my end plates and center baffles using this knife.
I found the Higo easy and fun to use. Just 2 cuts were needed. One cut to score the line and a second cut to finish. The second cut was fun as I was able to push cut the Higo through the cardboard. In the above pics you can see the shapes of the plates and baffles that I have cut. I cut a total of 6 pieces. As I got close to cutting out the last one I decided, kinda late in the process, to compare the cutting ability to a couple of other knives. A Queen #48 whittler and TL- 29 mod that I built a couple of years ago.

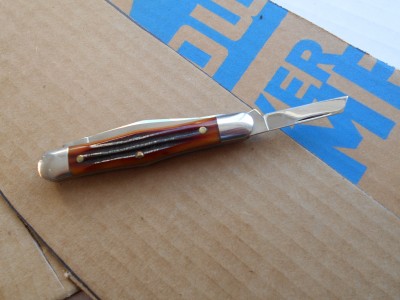

First to go up against the Higo was the Queen. I only used the coping blade. You can probably guess how sweet that knife cut through cardboard! Of course with that slim blade and quality blade steel the scoring cut was so deep that I just snapped the cut line to finish the job! No surprise here.
Next up was the TL mod. For this test I focused on the using the Wharncliffe/screwdriver blade. The modded Wharncliffe did an outstanding job cutting through the cardboard, with the ribbing or against the ribbing in the cardboard this blade was almost as good as the Coping blade on the Queen.

While the Queen had the thinnest blade the Higo has second thinnest blade with the TL Wharncliffe having the thickest. The Higo felt good in the hand. So much so that I was surprised by how comfortable it is! The TL was also easy to use with a thick heavy handle and the wharncliffe blade it beat out the Higo but not by much. The Queen? It cuts like a dream but with the arthritis in my hands it was a little uncomfortable but not much. In conclusion I like the Higo very much! I have 3 or 4 of them and this is first time that I have used one. I may even mod one at some point. Just using the blade. Maybe some nickle silver liners and walnut handles or Elk or who knows. Mr. Nagao makes a simple knife that is a pleasure to use. ::nod:: I still have to cut and build the solar collector and put the whole thing together. Its been getting pretty cold around here and I can always use some free heat! ::tu::
User avatar
Quick Steel
Posts: 18358
Joined: Thu Dec 16, 2010 5:39 pm
Location: Lebanon, KY

Re: Higonokami put to the test

Post by Quick Steel »

Nicely done goldpan. I admit that I have a little difficulty in ever thinking of a Higonokami as a POS.
User avatar
deo-pa
Posts: 1415
Joined: Thu Oct 23, 2014 7:57 pm
Location: Boston, MA
Contact:

Re: Higonokami put to the test

Post by deo-pa »

Be sure and post a photo Randy when the project is finished.

Dennis
User avatar
Sharpnshinyknives
Gold Tier
Gold Tier
Posts: 6312
Joined: Mon Jul 16, 2018 2:32 am
Location: Indiana
Contact:

Re: Higonokami put to the test

Post by Sharpnshinyknives »

Glad to read a review of a Higonokami. I purchased 2 for myself for Christmas, custom made jobs from Japanese Knives Direct, or JKD. This style of knife goes back centuries, it wouldn’t have stood the test of time if it wasn’t good.
FYI, JKD offers kits to assemble your own Higo knife, that might be a good place to start if you are looking to customize one.
SSK
User avatar
#goldpan
Posts: 1891
Joined: Sat Mar 29, 2014 6:00 pm

Re: Higonokami put to the test

Post by #goldpan »

Sharpnshinyknives wrote: JKD offers kits to assemble your own Higo knife, that might be a good place to start if you are looking to customize one.
SSK
I went to their web site to checked out the kits and could not find a link. Could post a link to their kits please? Thanks!
User avatar
Sharpnshinyknives
Gold Tier
Gold Tier
Posts: 6312
Joined: Mon Jul 16, 2018 2:32 am
Location: Indiana
Contact:

Re: Higonokami put to the test

Post by Sharpnshinyknives »

#goldpan wrote:
Sharpnshinyknives wrote: JKD offers kits to assemble your own Higo knife, that might be a good place to start if you are looking to customize one.
SSK
I went to their web site to checked out the kits and could not find a link. Could post a link to their kits please? Thanks!

Gold, their website scan be difficult to navigate. It on this page: http://japaneseknifedirect.com/Hattori.html. Scroll down on the Hattori page and you see the heading Higonokami the kits are there.
Good luck,
SSk
User avatar
#goldpan
Posts: 1891
Joined: Sat Mar 29, 2014 6:00 pm

Re: Higonokami put to the test

Post by #goldpan »

Thanks SSK I found it!
User avatar
#goldpan
Posts: 1891
Joined: Sat Mar 29, 2014 6:00 pm

Re: Higonokami put to the test

Post by #goldpan »

deo-pa wrote:Be sure and post a photo Randy when the project is finished.

Dennis
I sure will Dennis. I already have an idea for building one that should be more efficient. But more on that later.
User avatar
#goldpan
Posts: 1891
Joined: Sat Mar 29, 2014 6:00 pm

Re: Higonokami put to the test

Post by #goldpan »

The project for the time being is done. After I finished putting it together I covered the interior with foil and painted it black. The overall dimensions match the inside of my double doors, just on the passive half. The doors are made of wood with 10 12x12 window panes. The collector is designed to mount on the inside of my door. Most collectors that I have seen are made to go outside and use some sort of ducting to pipe the hot air into the house.
I mounted the solar collector using blue painter's tape. Initial testing was surprising. Since I went the easiest way possible on this build I had mixed feelings as to how well it would work. The first day that I could test was partially cloudy. The outside temp was in the high 50's to low 60's. I was pleased when the top vent produced a 75 degree air flow. Using a infrared thermometer I found a hot zone inside the collector about 15 inches below the top vent. The hot zone was producing 100 degree temps. So how do I get more than 75 deg out of the vent? I cut off 20 inches from the bottom of the collector and moved the entire thing down the door 12 inches.
With the collector in this position I can get temps in the high 90's. I'm very pleased. After all its free heat! And the 20 inches that cut from the bottom? I placed it in one of my smaller west facing windows and get 85deg out of it!

Stay tuned as I am working on version 2 that according to what I have read is capable of 120 deg.!
doglegg
Gold Tier
Gold Tier
Posts: 24005
Joined: Mon Sep 18, 2017 2:35 am
Location: Grand Prairie, Texas

Re: Higonokami put to the test

Post by doglegg »

A card board heater! I enjoyed the knife review and the heater demonstration as well. Amazing. ::tu::
scubamedic5011
Posts: 18
Joined: Sat Feb 28, 2015 8:19 pm
Location: Relocated to North Dakota. From Florida.

Re: Higonokami put to the test

Post by scubamedic5011 »

@goldpan thanks for the review and The very cool heater idea! I haven't thought about trying to harness some free heat up here in North Dakota... Let us know how your Higo mod goes!
C'mon now, that's just science!

If you need me, I'll be over in the corner. Talking to myself. They think I'm funny.
