Italian Switchblade WIP

Postby Jeffinn » Wed Dec 06, 2017 11:25 pm

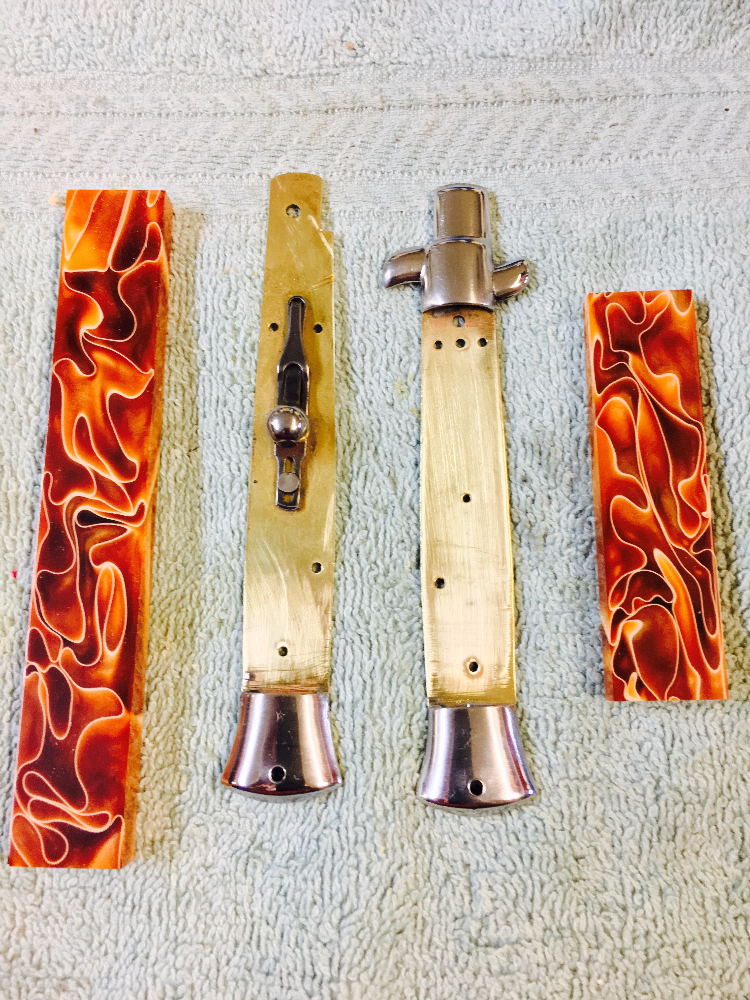

I had a few switchblade parts in a bag of parts that I bought previously so I decided to see about assembling it. Here's the liners with the bolsters soldered on and some highly visible acrylic pieces that will be used for the handles;

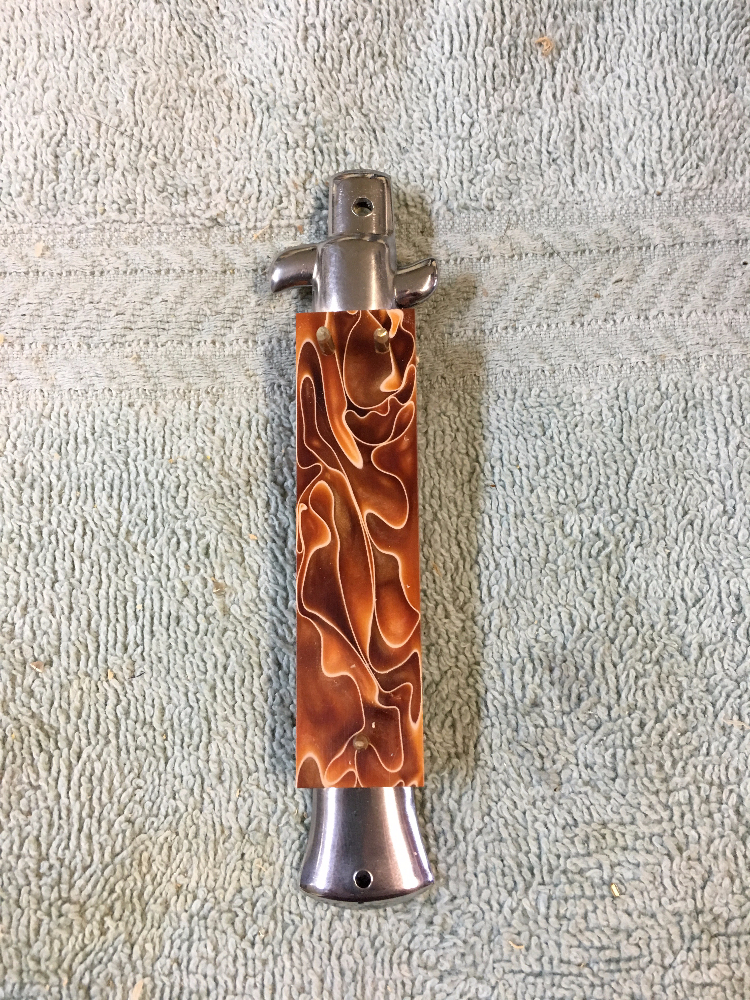

I cut and roughly fit the handle for the rear scale and pinned it temporarily in place;

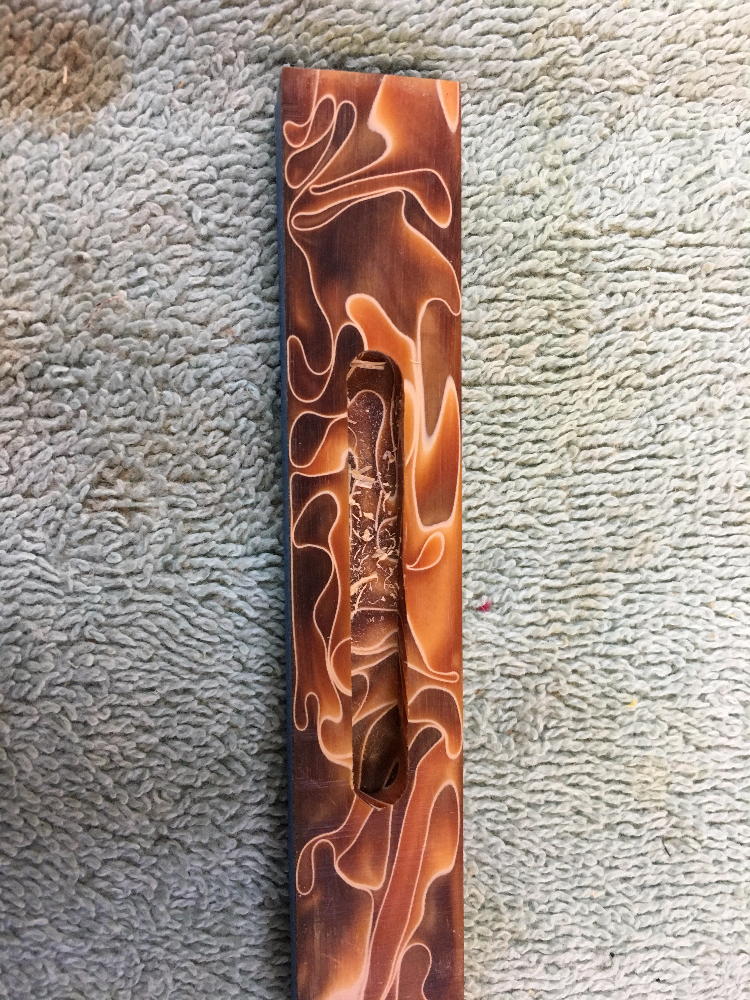

For the front scale there has to be a channel cut in the back of the scale. I use a trim router and table for this but other guys freehand this in with a dremel and bit;


Now there needs to be a hole for the button to come through. I usually lay the scale along side of the liner and draw a pencil line where the hole needs to go (there's probably easier ways to do it but it works okay for me).I use a Forstner bit to get the hole and then file and shape as needed to get the button moving freely;


That's it for today, my back is telling me its time to take a break.
Tomorrow I'll shape the scales to the liners and start pinning everything together.
Jeff
If it ain't broke, you're not trying!

User avatar
Railsplitter
Bronze Tier
Bronze Tier
Posts: 495
Joined: Wed Oct 17, 2007 10:43 pm
Location: Springfield, Illinois

Re: Italian Switchblade WIP

Postby Railsplitter » Wed Dec 06, 2017 11:55 pm

That's going to turn out nice, Jeff. I can't wait to see your updates.
Rick T.

User avatar
glennbad
Gold Tier
Gold Tier
Posts: 3888
Joined: Mon May 15, 2006 11:13 am
Location: NH

Re: Italian Switchblade WIP

Postby glennbad » Thu Dec 07, 2017 3:17 am

Looking good so far! I have a few autos to work on, but in my mind it's a different setup than standard folders. I'd hate to get wrapped up in them and lose focus on slipjoint work, but someday...

Jeffinn
Posts: 58
Joined: Fri Nov 10, 2017 3:16 am
Location: Roseville, Mi

Re: Italian Switchblade WIP - Finished

Postby Jeffinn » Fri Dec 08, 2017 2:03 am

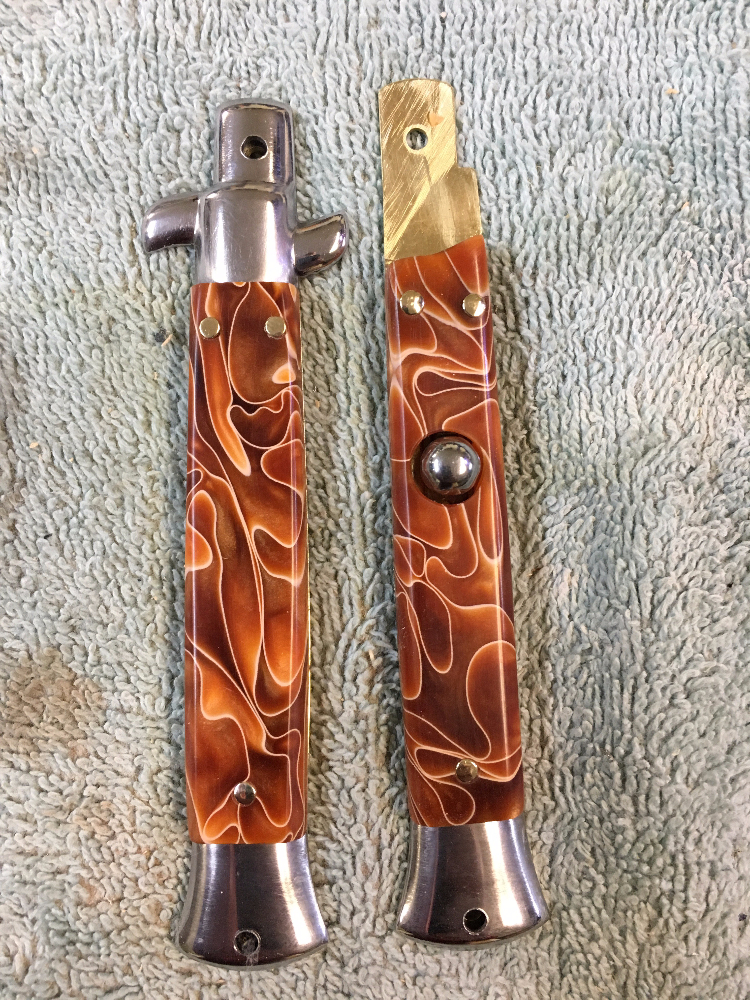

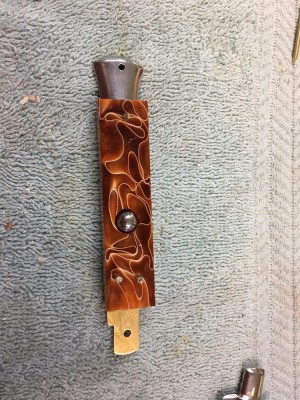

So I worked on the switchblade again tonight and was able to get it roughed in and together. I sanded the scales to fit the liners then pinned them into place. I usually peen one side of the pins before installing them into the knife. Then I just need to trim the pin on the inside of the liner and peen it into place. This helps prevent damage to the knife handle scales.I also put multiple layers of masking tape on the handle scales and on my anvil to prevent damaging the outer pins;
switchblade_3_both scales.jpg

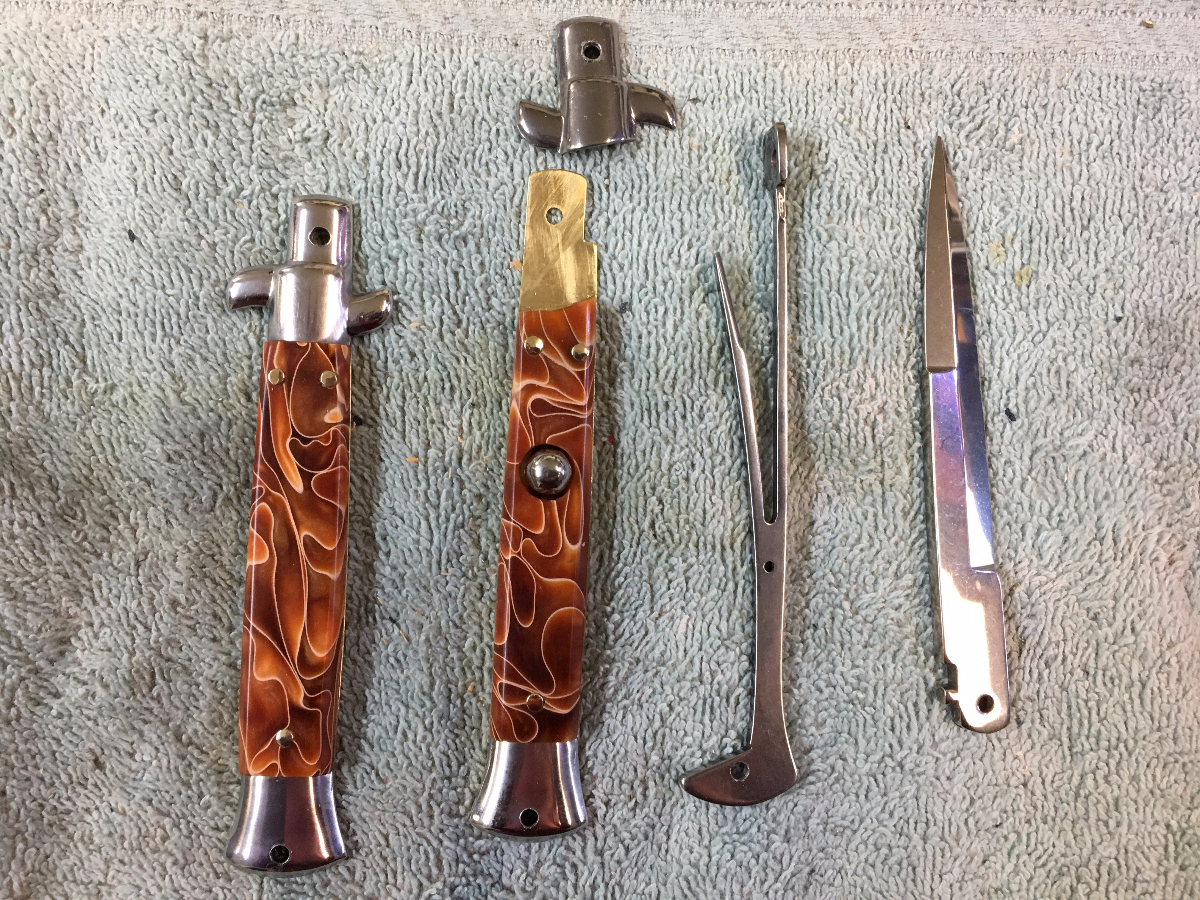

Here's all the parts laid out for assembly. It was during this stage that I discovered that the spring wasn't the corrent spring for this knife. It was close so I decided to go ahead and assemble the knife;

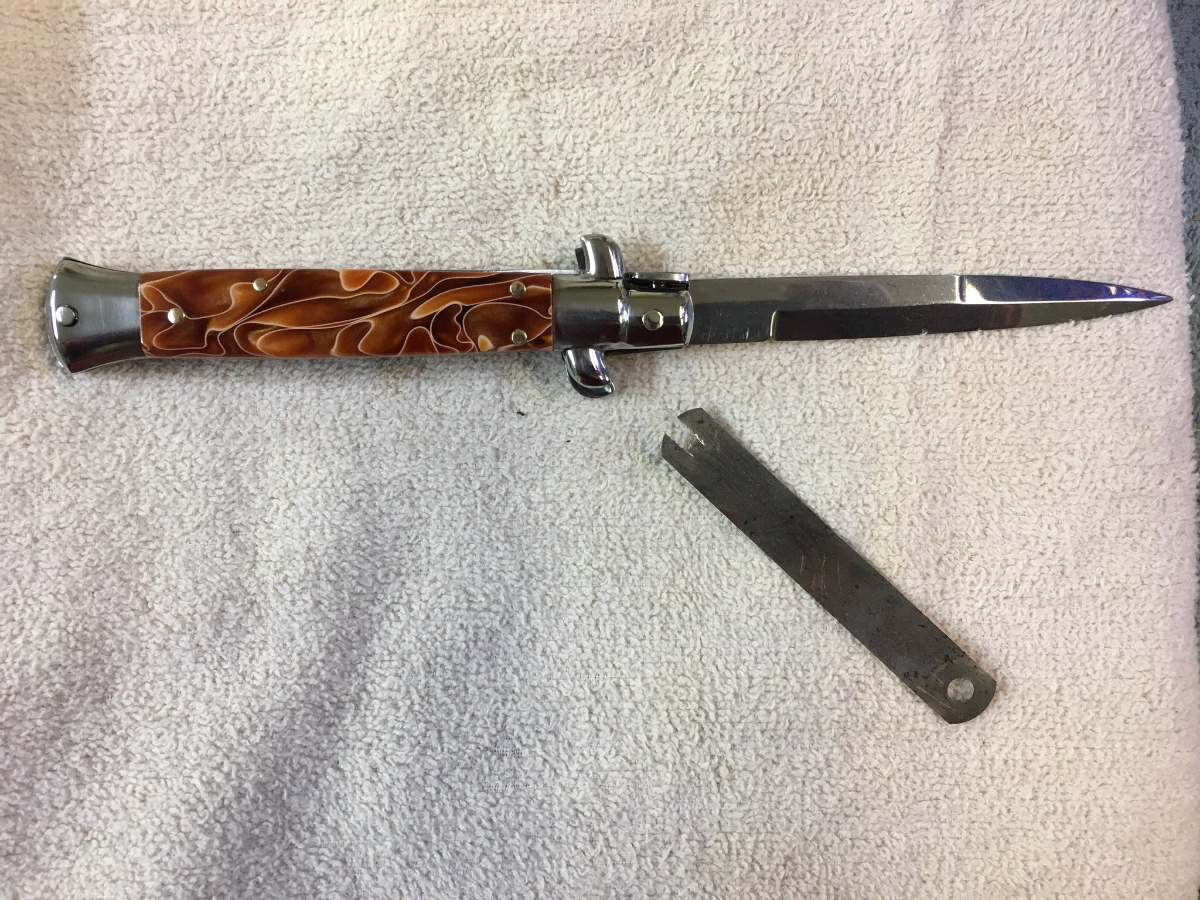

When I peen the pivot pin I use a .004 inch feeler gauge with a notch cut out of it, placed between the blade and the Liner to ensure theres enough clearance for the blade to pivot freely;

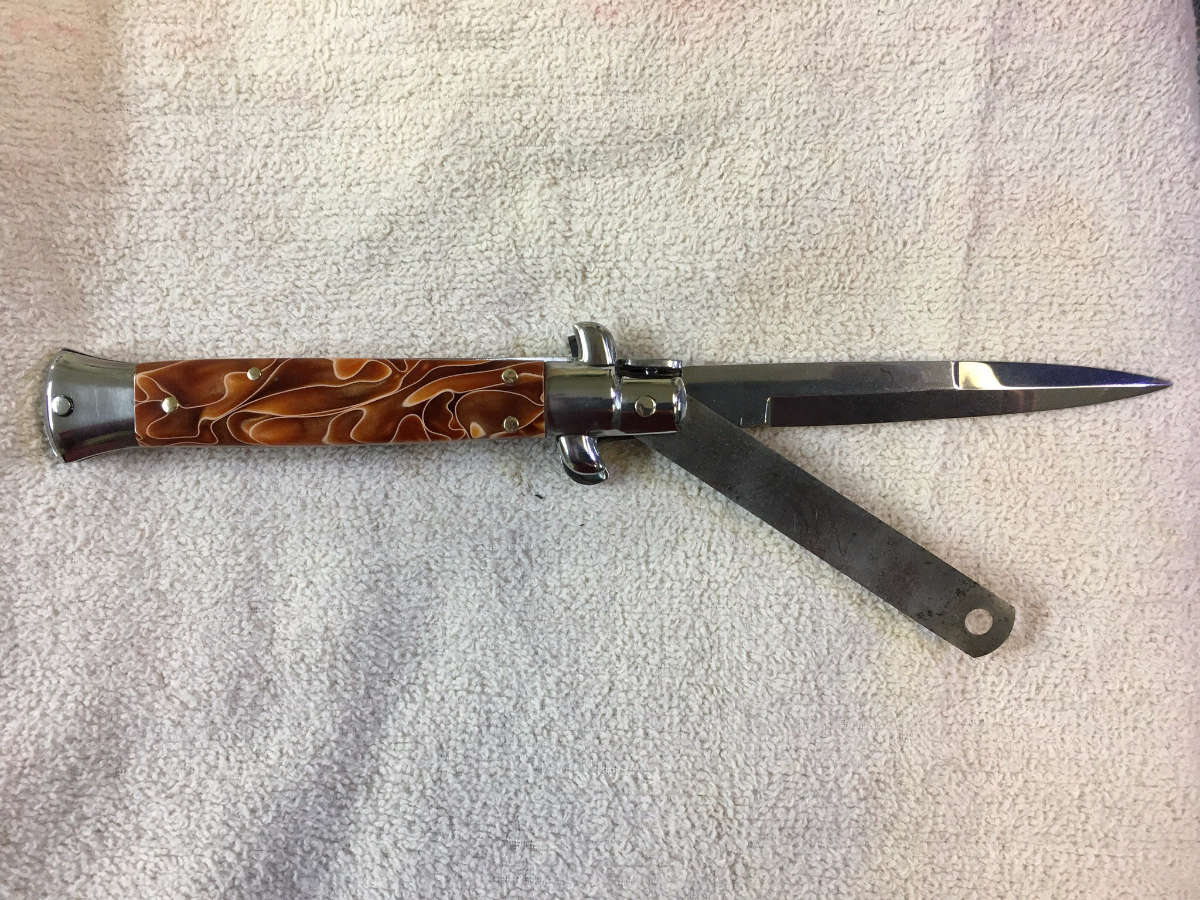

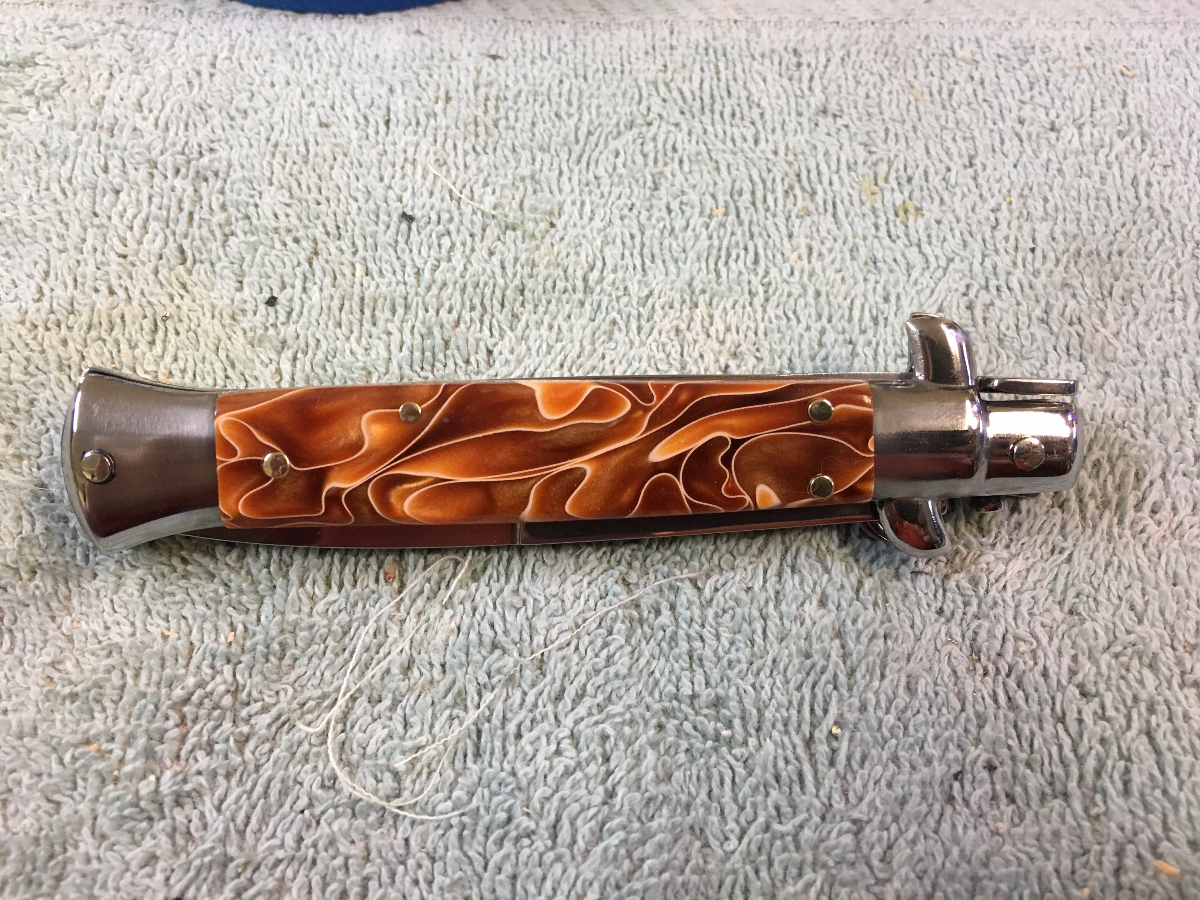

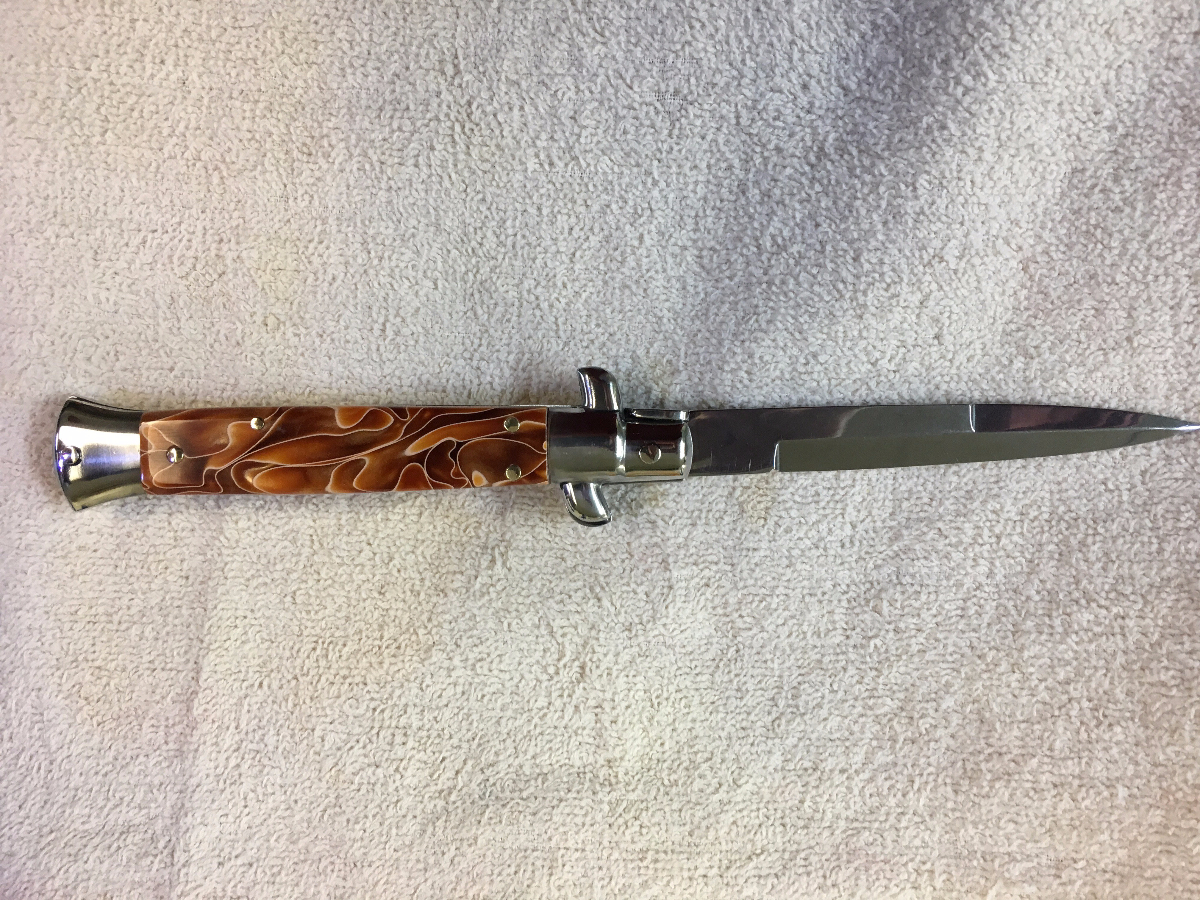

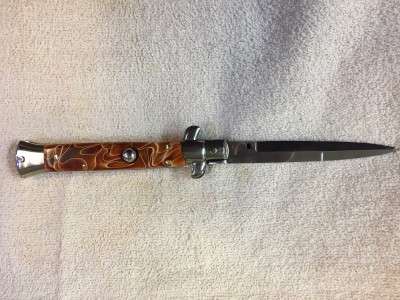

So here's the final finished pics of the knife. It still needs a bit of finish polishing but all in all it turned out okay;



I'll finish polishing the scales a bit more tomorrow, see if any pins need to be touched up and then its on to the next project!
Jeff
If it ain't broke, you're not trying!

sam eib
Posts: 86
Joined: Thu Jun 08, 2017 8:52 pm

Re: Italian Switchblade WIP

Postby sam eib » Fri Dec 08, 2017 8:27 am

Looks good, keep it up!
