Queen EDC restoral

[Reverand]

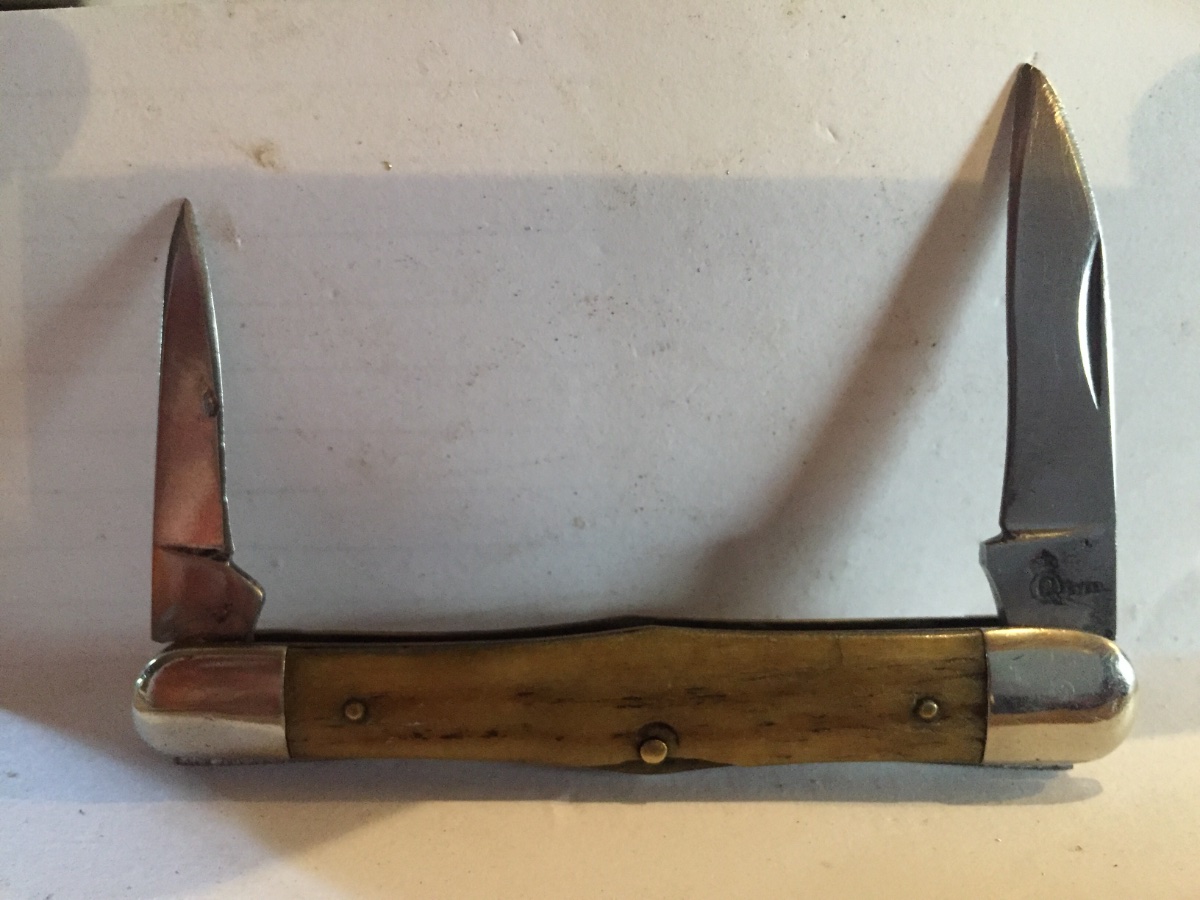

This beauty was pretty worn. I reshaped the Main into a Wharncliffe (it didn't take much!), and rehandled it in acrylic ($2.99 short pen blank from Woodcraft!)

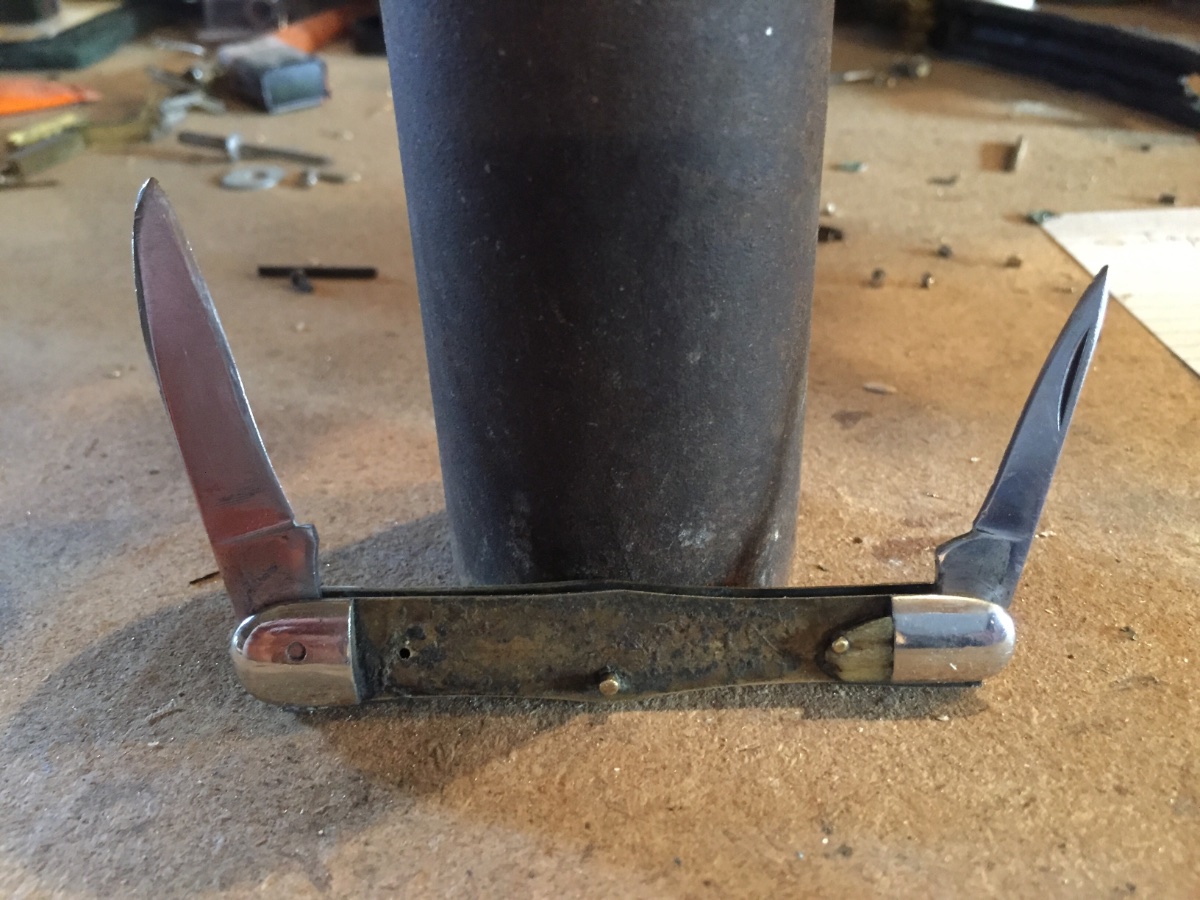

Big chip missing below pivot pin.

Missing pile side

This is the first time that I have replaced scales without taking the knife completely apart. I am building a Stiddy, and was able to glue, clamp, and later pin the scales while the knife was together.

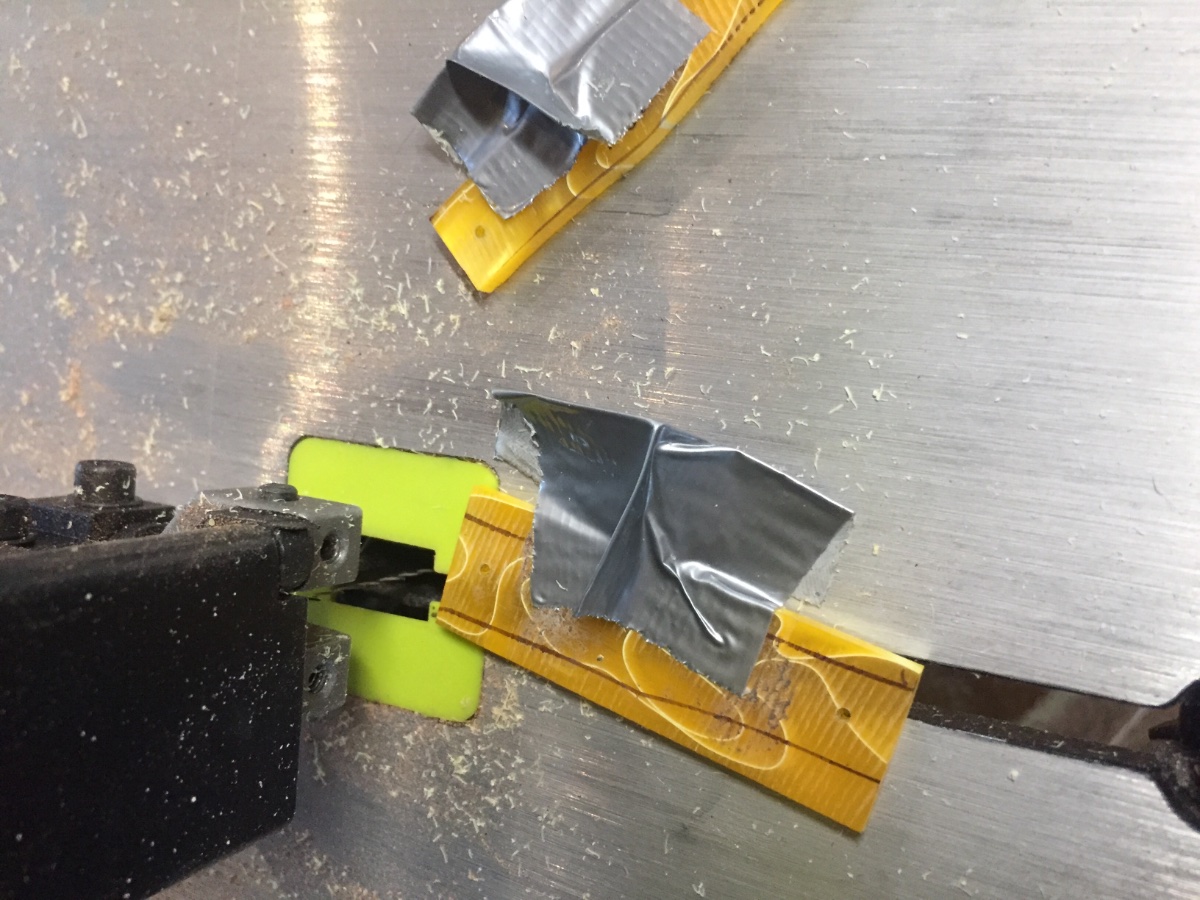

Rough cutting the acrylic - open all shop doors for ventilation!!!!

I actually did this twice - I cracked both scales the first time, before I had built the Stiddy.

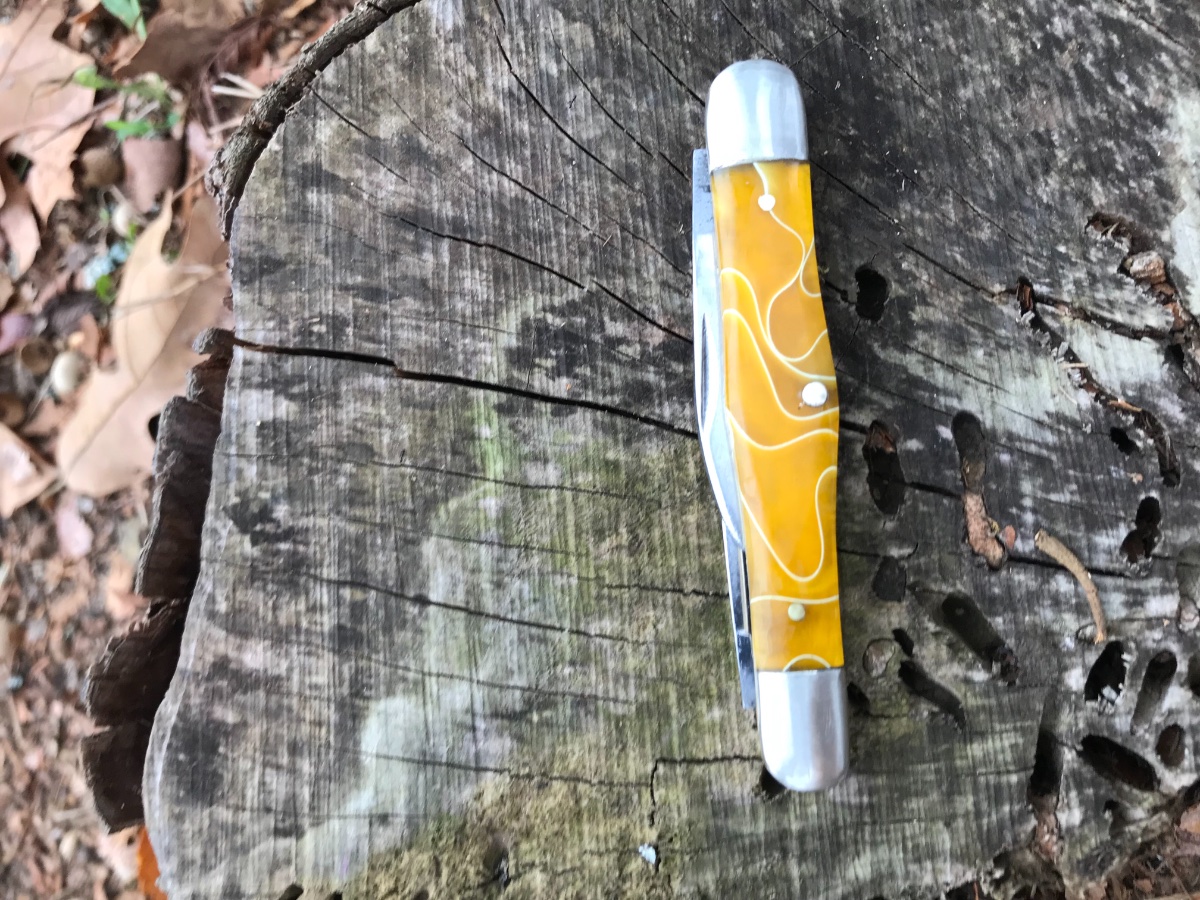

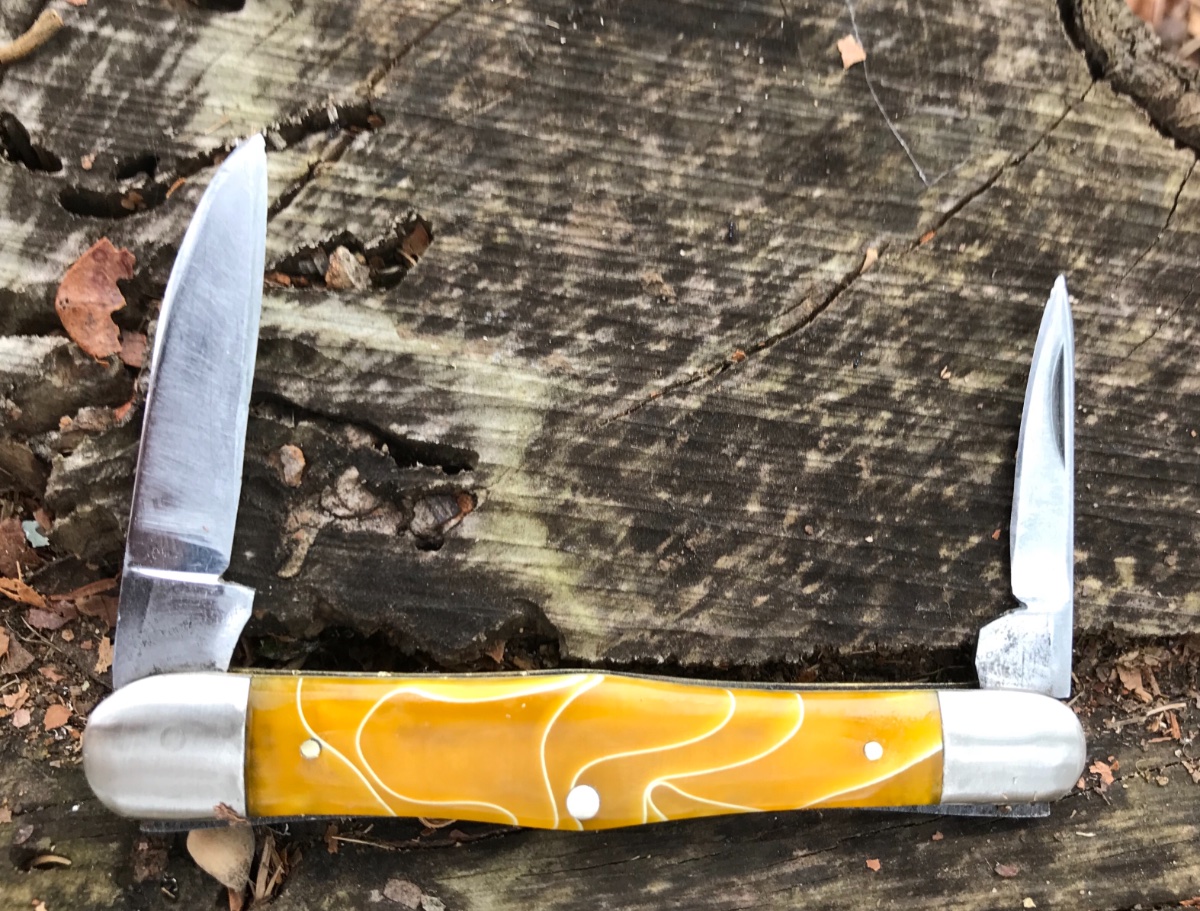

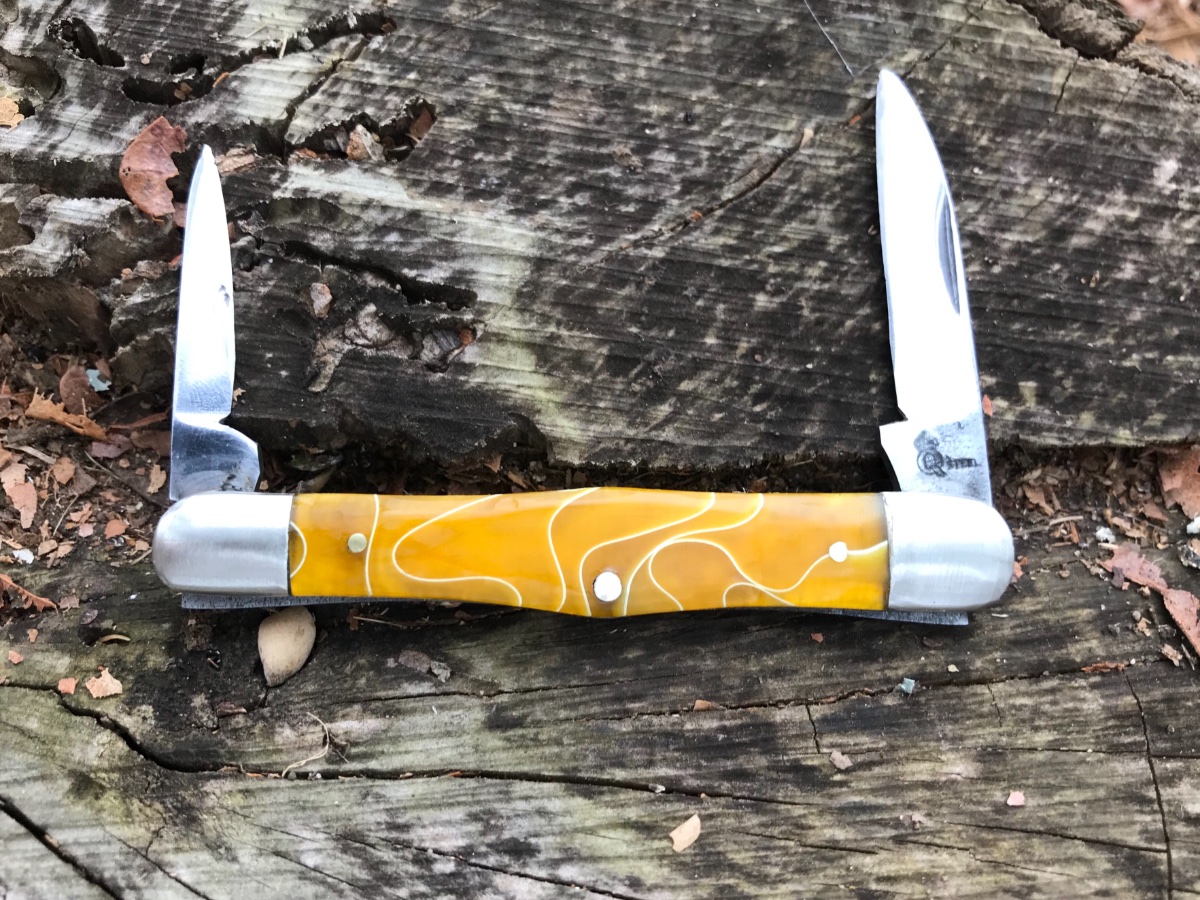

She is going into my EDC rotation.

[Jeffinn]

Nice work!
I’ve used some pen making acrylic material before and it’s a great way to get some really nice colors into your knife handles. It’s fairly easy to work with too.
Jeff

[doglegg]

Really turned out very knice Reverand. The handles look great and the blade mod as well. Best one yet.
A picture of your stiddy?

[Doc B]

That acrylic is really nice! Great result!

[Colonel26]

Very nice mod!

[Byrd]

That turned out great Reverand! I want to try replacing scales without disassembly. I've got an old Western that's a perfect candidate.

[treefarmer]

Handles like that could give a lot of old worn out knives new life.
Very nice!
Treefarmer

[Reverand]

Really turned out very knice Reverand. The handles look great and the blade mod as well. Best one yet.
A picture of your stiddy?

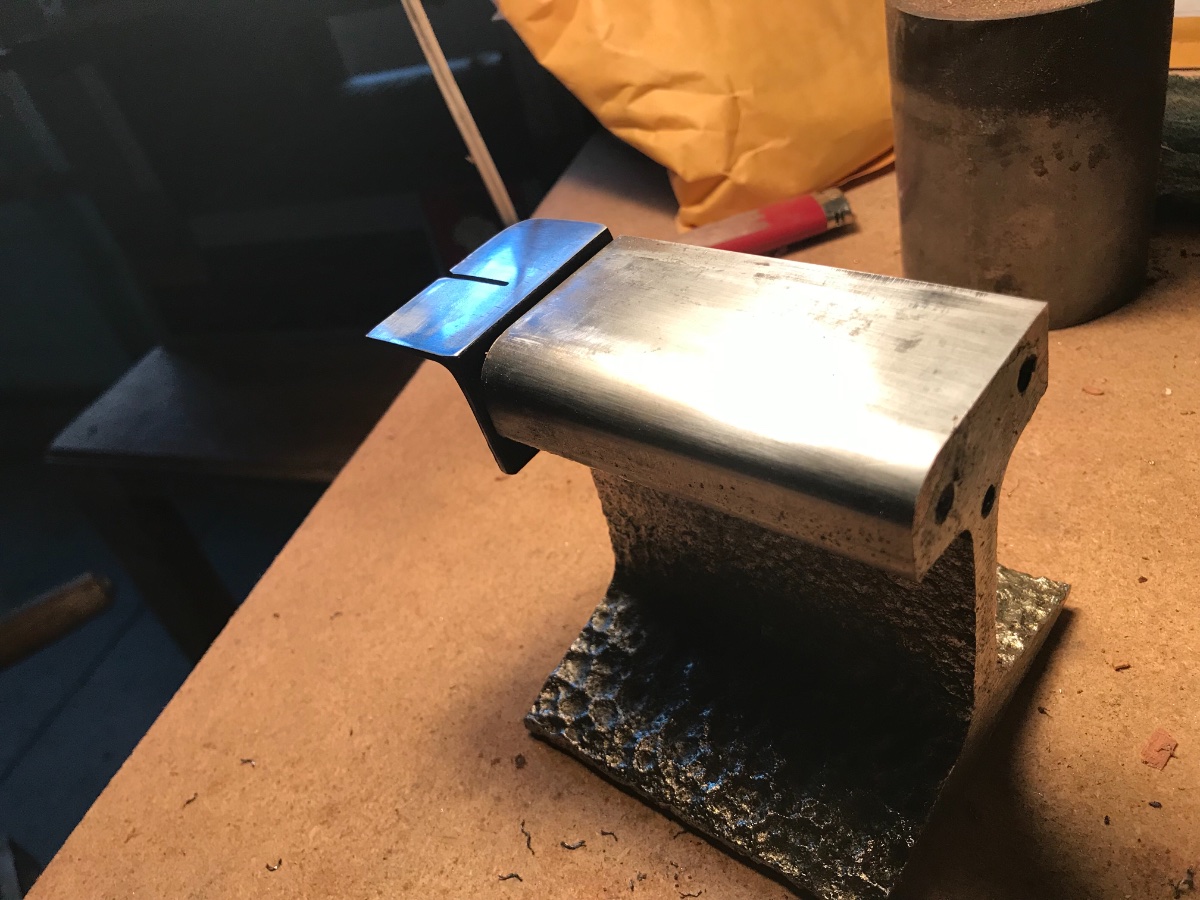

Here you go, doglegg! It ain't much, and it is still a work in progress...but it was cheap! $20 piece of track, sanded flat on top, and a tang built from a piece of angle iron. I have much more that I want to do, but it seems that I spend so much time working on tools that I can hardly work on knives!

[doglegg]

Very cool Reverand. Kind of special to make your own tools. Looks good. Thanks.

[Byrd]

Thanks for the pic of the stiddy Reverand. I need one of those and you've given me an idea on how to make one.

[glennbad]

Cool, looks great!

[Meridian_Mike]

The knife mod looks great! I like that scale color!

Your stiddy looks nice too.
I have a couple of small anvils and a stiddy similar to yours. The anvils have a hole for driving out pins.

Excellent!

[orvet]

Good work on the knife, it looks really good, but I love your stiddy!
They're actually pretty simple to make, the hard part is getting the top flattened. What did you use to flatten the top, an angle grinder?

[Tony_Wood]

Good work on both the knife and the stiddy.

Now you need to turn a pen from the same acrylic so you can have a matching pair.

[Reverand]

Good work on the knife, it looks really good, but I love your stiddy!
They're actually pretty simple to make, the hard part is getting the top flattened. What did you use to flatten the top, an angle grinder?

Dale,
I probably found the hardest way in the world to flatten the top, but it was all that I could think of:
I clamped the piece of track to a 4-ft level, and set it upside-down on a 4x36" belt sander.
I held it as level as I could and just let the weight of the metal pull it down onto the sander.
I had taken a picture if it, but I can't seem to find it.
It seemed like it took hours and hours, but probably wasn't too long.
