Repairing Broken blades

muskrat man · Post by **muskrat man** » Thu Jan 31, 2008 5:43 am

sometimes replacing the blade isn't an option and you need to reprofile the broken tip to make the knife serviceable again such as in theis case. however, always remember- the more blade that is broken off, the more distorted the blade will look when reprofiled.

orvet · Post by **orvet** » Thu Jan 31, 2008 3:56 pm

Nice job MM.

I like to turn that type into a Wharncliffe myself.
I find more use for a Wharnnie than a clip blade when working around the shop,
but that is just my preference.

Dale

Ringmaster · Post by **Ringmaster** » Thu Jan 31, 2008 4:58 pm

Boy, I dunno Dale,

That would be a tough decision, on this particular blade... it would hafta be a pretty slim Wharnie, because there's not much to work with, on the spine of that blade.

Agreed, the whole thing is just a "user", at this point - It's gonna lay short in the frame, no matter what. You know I love a Wharncliffe, but I'd hafta study awhile, with that blade.

MM did do a good job, reprofiling tho', don't you think ? Hey ! How about a coping master blade ? I can see that, readily....

Just "kicking it around",

JR

jonet143 · Post by **jonet143** » Thu Jan 31, 2008 5:12 pm

the swedge lends to the straight re-profile in my opinion. too much material would have to be removed for any other style to look good jmo

orvet · Post by **orvet** » Thu Jan 31, 2008 5:48 pm

Ringmaster wrote:Boy, I dunno Dale,

MM did do a good job, reprofiling tho', don't you think ? Hey ! How about a coping master blade ? I can see that, readily....

JR

Absolutely, I agree. The job he did is outstanding. It has a better grind than a lot of factory knives.
The average guy-on-the-street would never know it was re-profiled.

I just like Wharnnies........................................................I see Wharnnies most every broken blade. I can't help it.

CCBill · Post by **CCBill** » Mon Mar 17, 2008 1:47 am

I was glad that Kaleb started this topic. Here is some old "stuff" that I can use and abuse as much as I need to and won't be out anything. I got all of these out of a friend's trash box. He was going to toss them because of broken blades. Now, I'm not as artistic as Kaleb and I only ground off enough to make them usable. Maybe Dale will like the wharncliffe blades.

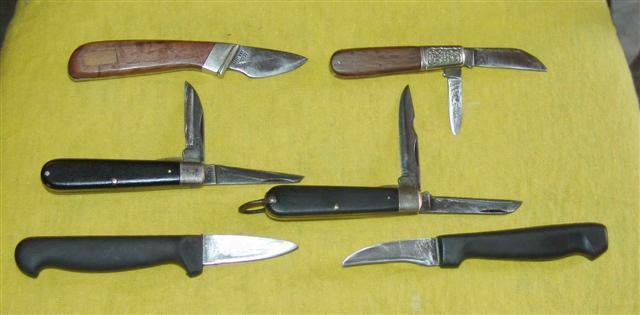

top lt.- 1560T Schrade rt.- Schrade barlow
Middle- lt Camco rt- Camillus
bottom 2, junk, stainless paring knives. "SCARY" sharp.

The Schrades also had broken handles, so I slapped some Oak on them.
The Screwdriver blades make GREAT knife blades. The steel seems to be as hard or maybe harder than the knife blades.
I know...BOOOO-RING!

Kinda fun fixin' 'em...
...Mild(not wild)CCBill...

muskrat man · Post by **muskrat man** » Mon Mar 17, 2008 2:26 am

Bill, I like those screwdriver regrinds I have a ton of them in the parts bin out in the garage. I have one partly reground into a wharnecliffe, just need to get the bevels refined with a fine belt.

Diligence · Post by **Diligence** » Tue Mar 18, 2008 2:34 am

I too have been looking at all the screwdriver blades....just haven't found the right shape to use yet....

J
