 Post subject: Turning Horn To Handles
PostPosted: Mon Jan 30, 2012 7:42 pm
Offline
User avatar

Joined: Fri Jun 30, 2006 4:04 am
Posts: 4823
Location: Ohio
I put this little tutorial together to show you how to process horns for use as knife handles. This applies for any American horned animal like cow and buffalo. Also, to avoid any confusion Elk, deer, and moose do not have horns, they have ANTLERS. Antlered animals shed their headgear, horned animals (with the exception of antelope) do not.

We start off with an ordinary cow horn

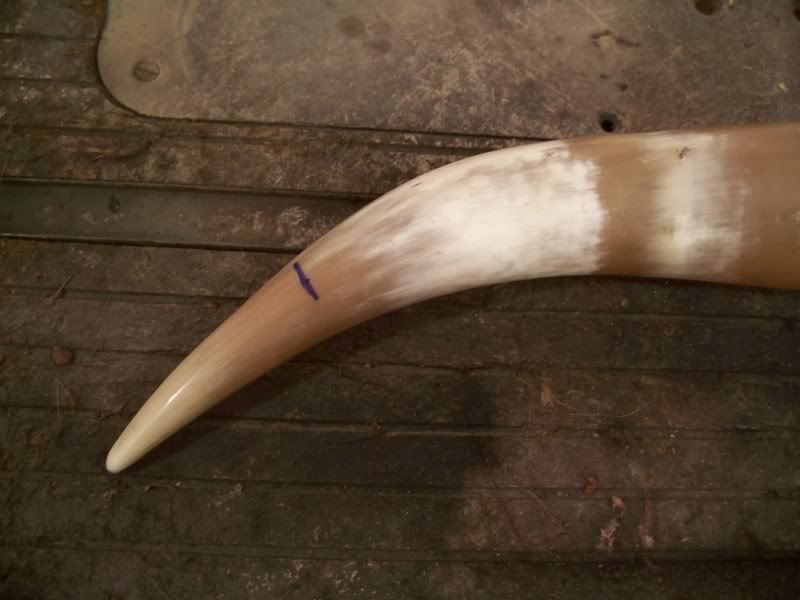

Mark it where it the tip starts getting solid

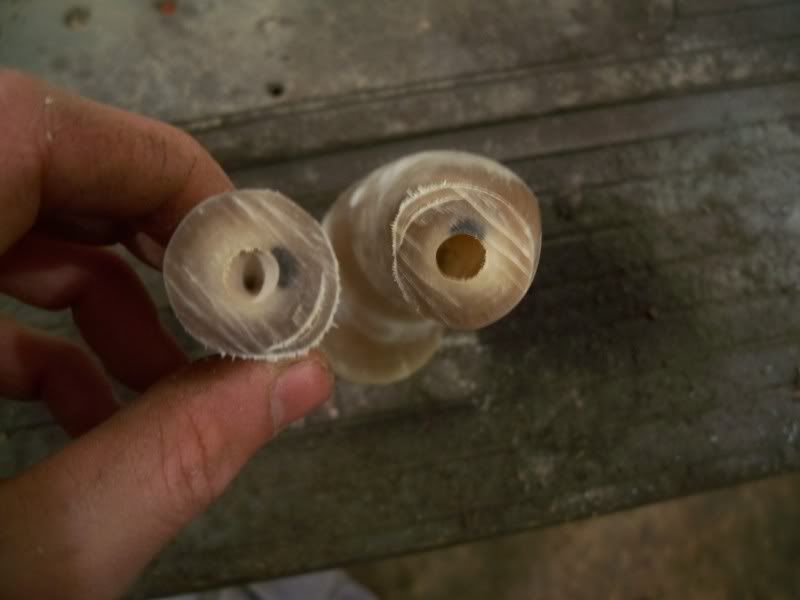

and cut it off

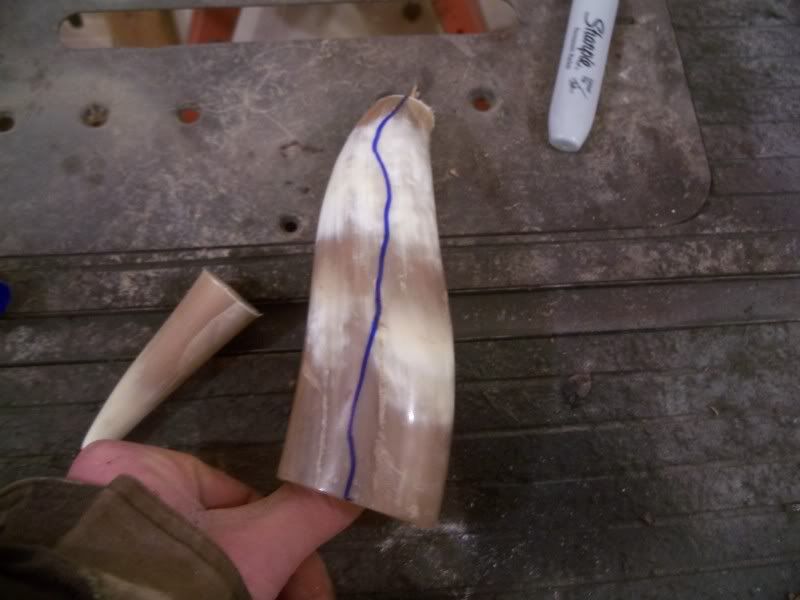

Now I make a rough mark and slice the horn in two. Always keep the cut parallel to the curve of the horn so if the horn is twisted you need to follow the curve of the horn, don't just make a straight cut or you'll lose material

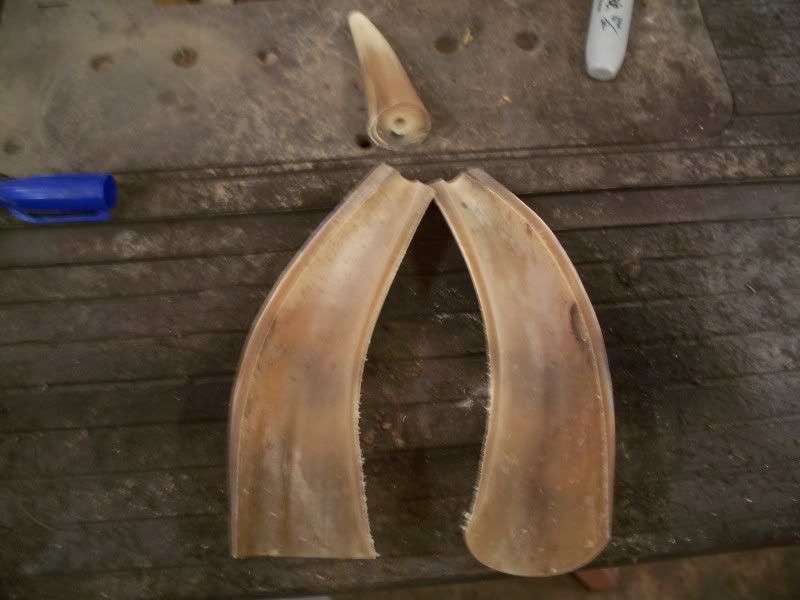

Here it is sliced right down the middle

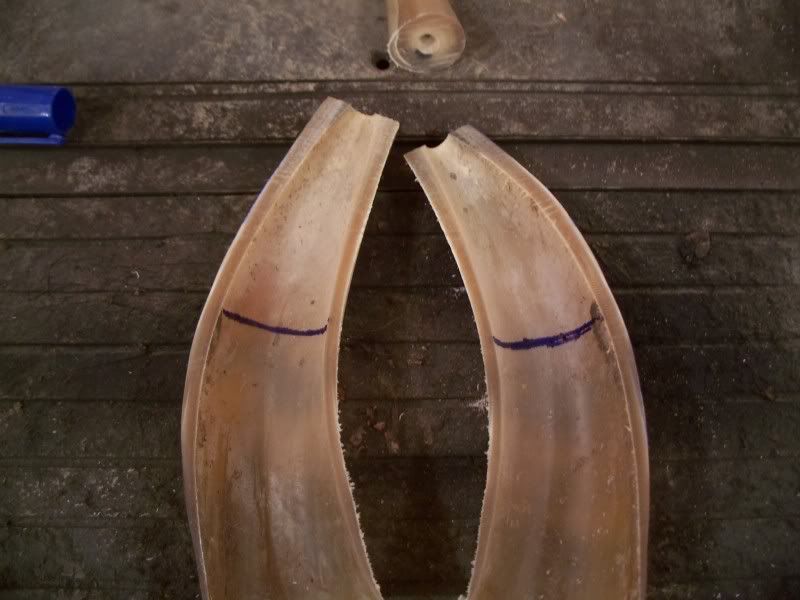

At about the halfway point is where the thickness begins to noticeably change, I'll get one thick set and one thinner set out of this relatively small horn plus I'll have the tip for another project.

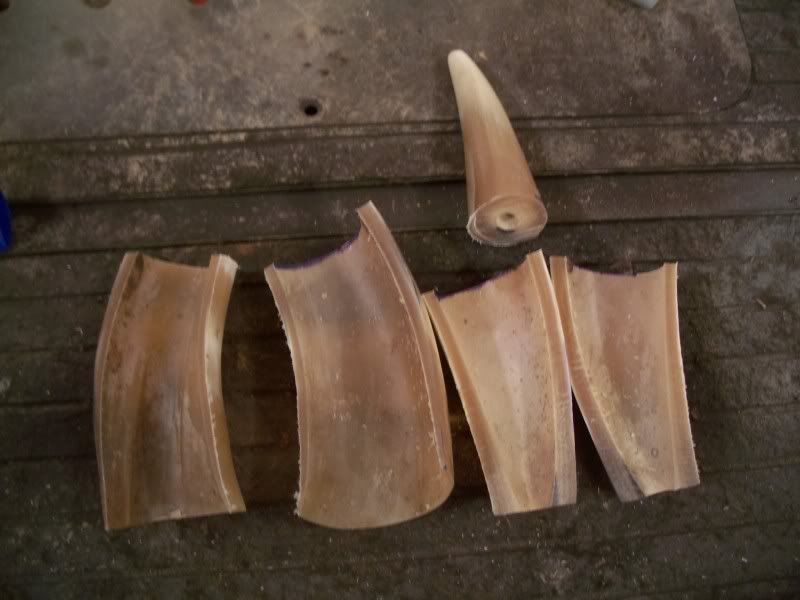

Here is everything

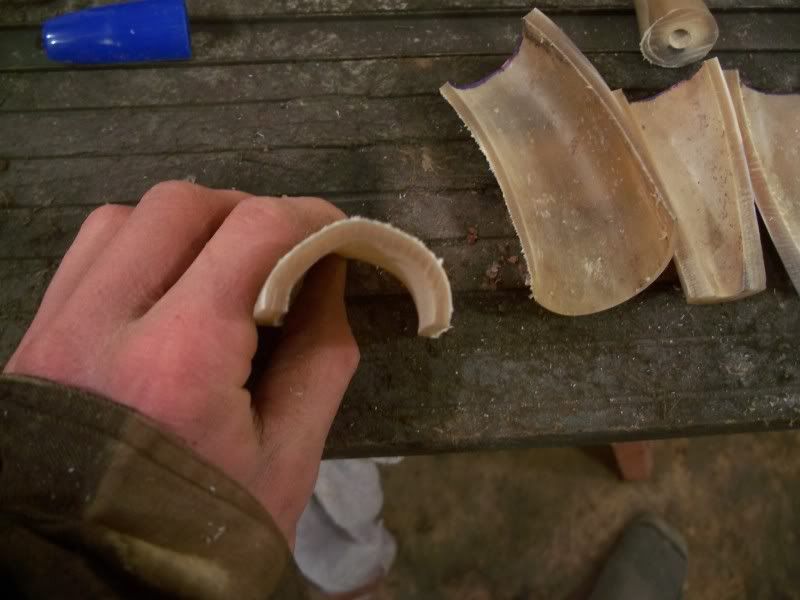

decent thickness once you get in off the very edge

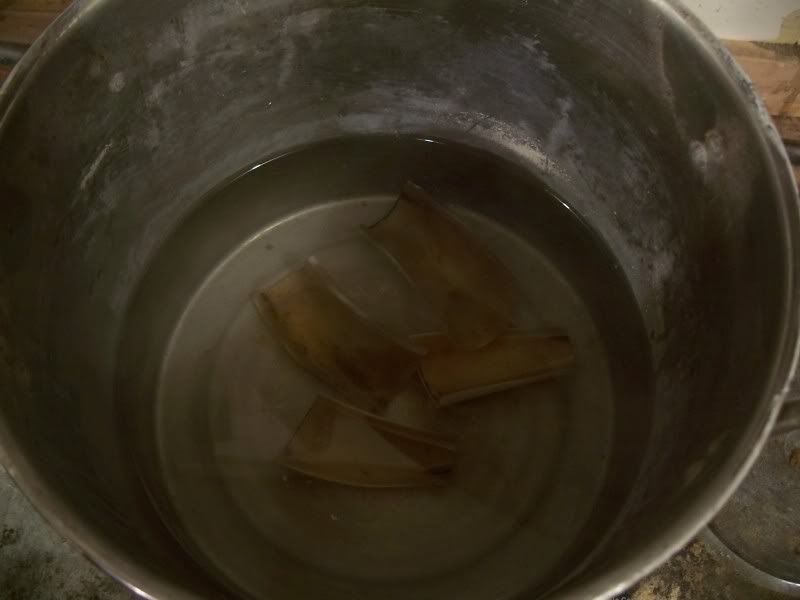

Chuck them all in boiling water, it doesn't stink too bad so you can do it inside if the wife will be gone for the day. I don't have that problem so I just boil them right in the kitchen. You could do it outside or in an outbuilding on a propane stove, turkey burner, ect. The hotplates I tried don't get hot enough to actually boil the water, the horn simmered for 5 hrs and was still too hard to clamp.

On a good rolling boil for around an hour for the thinner pieces, 1.5-2 hr for the thicker pieces ( 3/16" thick) to get them soft enough to clamp flat.

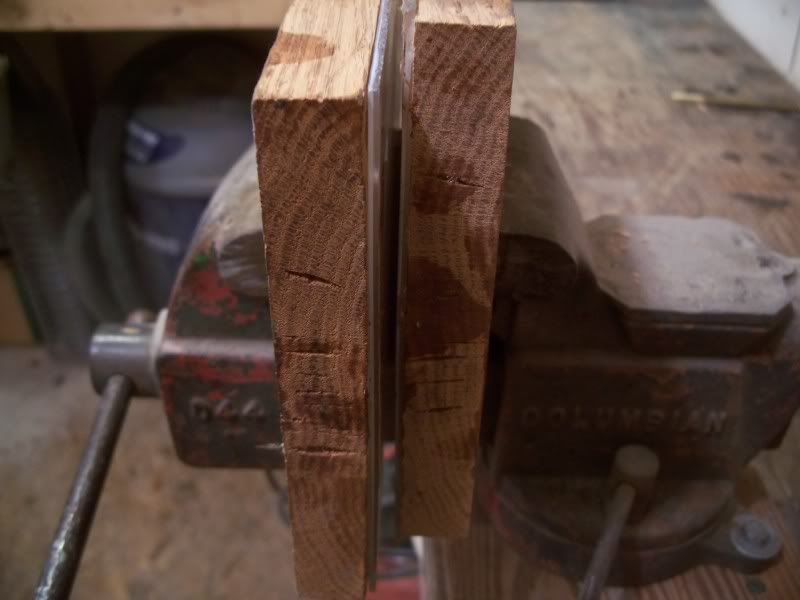

You can clamp them many ways but the best way I found by far was to use two flat pieces of wood (or metal, micarta ect as long as they're flat) and sandwich the horn between them and clamp them in a vice. This gives you the leverage and power you need to make the pieces good and flat.

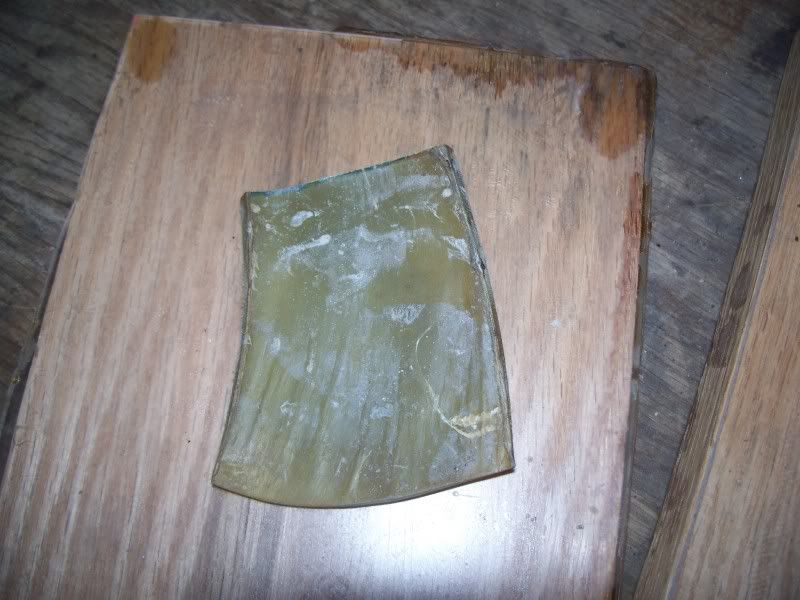

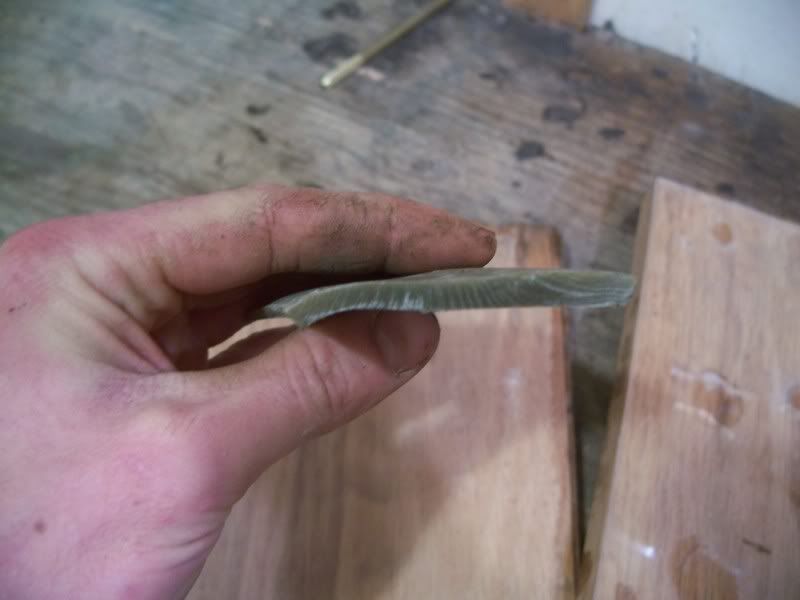

You should leave them clamped for a few hours to ensure they are fully dry and cool so they do not return to their previous curved state after removing them from the clamps.Nevertheless they will still need surface sanding to make them flat enough to install on a pocket knife.



I will update this in a day or two with a photo of the completed product installed on a knife.

_________________
The Constitution is not an instrument for the government to restrain the people, it is an instrument for the people to restrain the government

Knife Repair, Custom knives and Embellishment


http://muskratmanknives.com/


Top
 Profile

PostPosted: Mon Jan 30, 2012 8:21 pm
Online
User avatar

Joined: Fri Sep 11, 2009 12:41 pm
Posts: 9369
Location: South of Cincinnati
This is pretty cool MM ::tu::

_________________
"There are none so blind as those that refuse to see"

God Bless America - Though I don't know why he would want to.


Top
 Profile

PostPosted: Tue Jan 31, 2012 4:43 pm
Offline
User avatar

Joined: Tue Mar 16, 2010 4:10 pm
Posts: 1594
Images: 58
Location: N.C. USA
Great, MM! ::tu::
A lot simpler than the other articles had implied.

(good to know this doesn't end in divorce... maybe just extra chores. :lol: )

........ Joe

_________________
I've got a camouflage knife, but I can't find it.......

..... cardboard addicted.....

"The old timer's concentrated on making knives; not keeping records!!" ~ Bonfire bob


Top
 Profile Personal album

PostPosted: Tue Jan 31, 2012 10:25 pm
Offline
User avatar

Joined: Tue Aug 17, 2010 2:35 am
Posts: 2220
Location: SW MO Heart of the Ozarks
Excellent tutorial, MM! Can't wait to see the knife. I'm gonna hafta try a couple myself now. ::tu::

Thanks, WB


Top
 Profile

PostPosted: Tue Jan 31, 2012 10:34 pm
Offline
User avatar

Joined: Thu Feb 08, 2007 6:57 am
Posts: 7535
Images: 53
Location: MUSIC CITY
Great tutorial Kaleb! Never knew it was that easy.

_________________
A Fistfull Of Value-Grip One
Image Image


Top
 Profile Personal album

PostPosted: Sat Feb 04, 2012 4:27 am
Offline
User avatar

Joined: Fri Sep 30, 2011 3:44 am
Posts: 132
Location: Western Australia
I was just thinking about how do this myself the other day ::nod::

Thanks very much for the tutorial ::tu::


Brett.

_________________
Brett.

West Aussie Case Collector.


Top
 Profile

PostPosted: Sun Feb 05, 2012 4:52 am
Offline
User avatar

Joined: Fri Jun 30, 2006 4:04 am
Posts: 4823
Location: Ohio
Just noticed my "day or two" was up so I cobbled together this Boker whittler real quick with the horn, once it gets thin it is translucent so it would be a good idea to give the backside a shot of white spray paint before gluing it up. That way you can't see to the liner once it's polished. Darker horn would not have this problem.

_________________
The Constitution is not an instrument for the government to restrain the people, it is an instrument for the people to restrain the government

Knife Repair, Custom knives and Embellishment


http://muskratmanknives.com/


Top
 Profile

PostPosted: Sun Feb 05, 2012 4:56 am
Offline
User avatar

Joined: Thu Feb 08, 2007 6:57 am
Posts: 7535
Images: 53
Location: MUSIC CITY
Looks like an old classic now Kaleb! ::tu:: ::tu::

_________________
A Fistfull Of Value-Grip One
Image Image


Top
 Profile Personal album

PostPosted: Sun Feb 05, 2012 11:53 am
Online
User avatar

Joined: Fri Sep 11, 2009 12:41 pm
Posts: 9369
Location: South of Cincinnati
That old cow horn looks pretty nice ::tu:: ::tu::

_________________
"There are none so blind as those that refuse to see"

God Bless America - Though I don't know why he would want to.


Top
 Profile

PostPosted: Sun Feb 05, 2012 6:44 pm
Offline
User avatar

Joined: Tue Aug 17, 2010 2:35 am
Posts: 2220
Location: SW MO Heart of the Ozarks
Here's an old Kutmaster I did after reading the tutorial. It was a big help! Thanks again, Kaleb!

Attachment:
SANY0002.JPG [ 2.46 MiB | Viewed 634 times ]

Attachment:
SANY0004.JPG [ 2.56 MiB | Viewed 634 times ]


I kinda messed up, the colorful slab was supposed to end up on front! ::dang::
