How to cut a nail nick ??

This forum is for posting step by step techniques used in the art of making, customizing, and repairing knives. Please stop by and teach a few things or maybe learn something new from the talented members of AAPK.
FOG
Posts: 65
Joined: Mon Feb 02, 2009 3:24 am

How to cut a nail nick ??

Postby FOG » Mon Feb 02, 2009 3:32 am

Hi im a new member who,s been lurking for some time.Today i finally registered and hopefully
someone can give some info on cutting NAILNICKS on some slippie blades ive made,ive searched the web w/no success and thought this would be the place to ask.

I dont have a milling machine but i do have a drillpress if thats helpfull.
Thanks,Bryce

knifemaker3
Posts: 586
Joined: Tue Nov 25, 2008 10:56 pm
Location: Southern Missouri
Contact:

Re: How to cut a nail nick ??

Postby knifemaker3 » Mon Feb 02, 2009 3:40 am

Without having a mill, 2 options come to mind.

1. Dremel with a cut off wheel and a steady hand.

2. Chuck up a grinding wheel on an arbor in the drill press that has been shaped to cut the nailnick. Clamp blade onto a piece of angle iron and cut the nailnick.

I would recommend option one as you can clamp the blade and make things a lot safer. You can even make a long pull on the blade if you want. Just takes a steady hand and some practice.

Good Luck!
God Bless!

Craig Blankenship
Booger County Outfitters LLC.

Maker of Custom Knives and Custom Screenprinted Garments

User avatar
Absintheur
Posts: 274
Joined: Thu Jan 01, 2009 7:09 pm

Re: How to cut a nail nick ??

Postby Absintheur » Mon Feb 02, 2009 12:48 pm

I hate to suggest spending money to do this but if you are going to be doing it often I would invest in a Foredom http://www.foredom.com/ This flexible shaft tool allows for much more control than a Dremel. I own both but 90% of the time I use the Foredom. With the addition of the foot speed control it make using a cutting tool much easier as well as making it less goof prone.

If you do try using a Dremel I would clamp the Dremel down amd bring the steel to it rather than the other way around. Take normal safety precautions including taping the edge of the blade and work slowly and deliberately. I think the fiber cut off wheel would work best. Cit the straight top with the cut off wheel and the add the curved taper with a sanding drum.

I would also practice, a lot, on scrap before touching Dremel to a finished blade...lol.

knifemaker3
Posts: 586
Joined: Tue Nov 25, 2008 10:56 pm
Location: Southern Missouri
Contact:

Re: How to cut a nail nick ??

Postby knifemaker3 » Mon Feb 02, 2009 1:30 pm

Absintheur wrote:If you do try using a Dremel I would clamp the Dremel down amd bring the steel to it rather than the other way around. Take normal safety precautions including taping the edge of the blade and work slowly and deliberately. I think the fiber cut off wheel would work best. Cit the straight top with the cut off wheel and the add the curved taper with a sanding drum.

I would also practice, a lot, on scrap before touching Dremel to a finished blade...lol.


Ain't trying to be a horse's rear end by disagreeing with you so please don't take this wrong.

Sorry Absintheur, but I have to disagree with clamping the dremel down and bringing the steel to it. The reason is should you lose control of the blade the blade is going to be flung somewhere. Maybe into you. It's always best to clamp pointed objects just on the off chance that something bad happens. A dremel with a cut off wheel may go flying but it isn't going to stick in you.

I always try and think of safety as this. IF and I mean IF something does go wrong, what is going to be the best way to minimize the injury. In most cases that means clamping the part down. I've had blades get away from me on the sander, buffer, drill press, etc. just by not taking the time to clamp the blade down. Even though they weren't sharp, the points can still penetrate.

I just know from personal experience that anytime I'm working on knives, if possible I will always clamp the part being worked on down. Some steps you can't clamp down a blade, but when possible always clamp that blade.

Might save a trip to the ER or worst yet the morgue. :shock:
God Bless!

Craig Blankenship
Booger County Outfitters LLC.

Maker of Custom Knives and Custom Screenprinted Garments

FOG
Posts: 65
Joined: Mon Feb 02, 2009 3:24 am

Re: How to cut a nail nick ??

Postby FOG » Mon Feb 02, 2009 2:58 pm

Thanks for the replies.
I was sure hoping to hear another option other than a DREMEL,cause i just cant imagine getting a NICE looking nick w/one.I havent tried it but i have seen some that have and they rarely turn out well.

More ideas anyone ?

User avatar
Absintheur
Posts: 274
Joined: Thu Jan 01, 2009 7:09 pm

Re: How to cut a nail nick ??

Postby Absintheur » Mon Feb 02, 2009 3:46 pm

knifemaker3 wrote:
Absintheur wrote:If you do try using a Dremel I would clamp the Dremel down amd bring the steel to it rather than the other way around. Take normal safety precautions including taping the edge of the blade and work slowly and deliberately. I think the fiber cut off wheel would work best. Cit the straight top with the cut off wheel and the add the curved taper with a sanding drum.

I would also practice, a lot, on scrap before touching Dremel to a finished blade...lol.


Ain't trying to be a horse's rear end by disagreeing with you so please don't take this wrong.

Sorry Absintheur, but I have to disagree with clamping the dremel down and bringing the steel to it. The reason is should you lose control of the blade the blade is going to be flung somewhere. Maybe into you. It's always best to clamp pointed objects just on the off chance that something bad happens. A dremel with a cut off wheel may go flying but it isn't going to stick in you.

I always try and think of safety as this. IF and I mean IF something does go wrong, what is going to be the best way to minimize the injury. In most cases that means clamping the part down. I've had blades get away from me on the sander, buffer, drill press, etc. just by not taking the time to clamp the blade down. Even though they weren't sharp, the points can still penetrate.

I just know from personal experience that anytime I'm working on knives, if possible I will always clamp the part being worked on down. Some steps you can't clamp down a blade, but when possible always clamp that blade.

Might save a trip to the ER or worst yet the morgue. :shock:


I have done this a couple of times and if done properly it can be done safely. First I am using a slow speed, second the blade is taped including a cork taped over the tip. I always do that when working on a blade in hand. Yes an accident can happen I can also get hurt on my motorcycle, or at the range, or walking down the street. If the blade is properly prepared this is safe. Of course safety glasses, gloves, etc should also be used.

User avatar
gmusic
Posts: 3142
Joined: Tue Oct 04, 2005 7:27 pm
Location: Piute Mountains.
Contact:

Re: How to cut a nail nick ??

Postby gmusic » Mon Feb 02, 2009 4:14 pm

Fly cutter?
http://www.musicmadeknives.com

Rodger, (Rodger-50/2050), Bill (El Lobo), Johnny Fain (jonet143), Johnny Samples (Johnnyrotten),
Bill Price (CCBill)

AAPK Moderator

Please feel free to contact any mod or admin with concerns.

Ricky-D
Posts: 42
Joined: Mon Jan 28, 2008 9:45 pm

Re: How to cut a nail nick ??

Postby Ricky-D » Mon Feb 02, 2009 6:26 pm

Actually a drill press is a "poor man's" milling machine! You could assess the quality of the spinning chuck and proceed carefully. I would suggest some trial cutting to determine the best course of action and exact cutting tool to use. A good vise is indicated and develop a repeatable process to assure a good job.

Trying different tools in the chuck is the way to go to find the best result. A steel cutting tool will give better profiles and results than abrasive tools like stones and discs. Carbide will yield the best results. You can use tools designed for wood and soft non-ferrous cutting being sure to adjust feed and speed to avoid breaking the tool.

Going slow, making test runs and experimenting will give you the best results.

FOG
Posts: 65
Joined: Mon Feb 02, 2009 3:24 am

Re: How to cut a nail nick ??

Postby FOG » Mon Feb 02, 2009 11:03 pm

I tried a few different things today using some aluminum stock as test material, in the dremel tools there is a round burr sorta tool that did ok ish but not really what i want.The closest i came
to something that might work was with a cutoff wheel mounted in my drillpress but im still not satisfied w/the results.

I,ll keep testing but ANY INPUT IS WELCOME

I dont have, nor have i ever used a fly cutter, maybe that will work better

User avatar
muskrat man
Posts: 5206
Joined: Fri Jun 30, 2006 4:04 am
Location: Ohio
Contact:

Re: How to cut a nail nick ??

Postby muskrat man » Mon Feb 02, 2009 11:05 pm

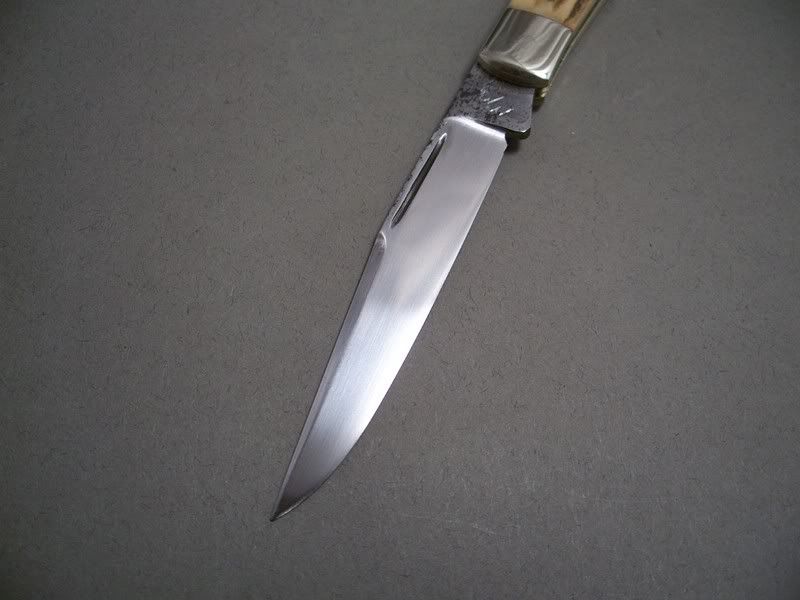

all I use is a dremel and a reinforced cut off wheel that is worn down to about 1/2" in diameter. it does take a steady hand and practice but it's not impossible.
Those who would sacrifice liberty for security deserve neither and will lose both.

Custom knives, repair, restoration & embellishment
Certified Hubertus, Taylor, & Schrade repairman past and present
http://www.muskratmanknives.com

FOG
Posts: 65
Joined: Mon Feb 02, 2009 3:24 am

Re: How to cut a nail nick ??

Postby FOG » Mon Feb 02, 2009 11:09 pm

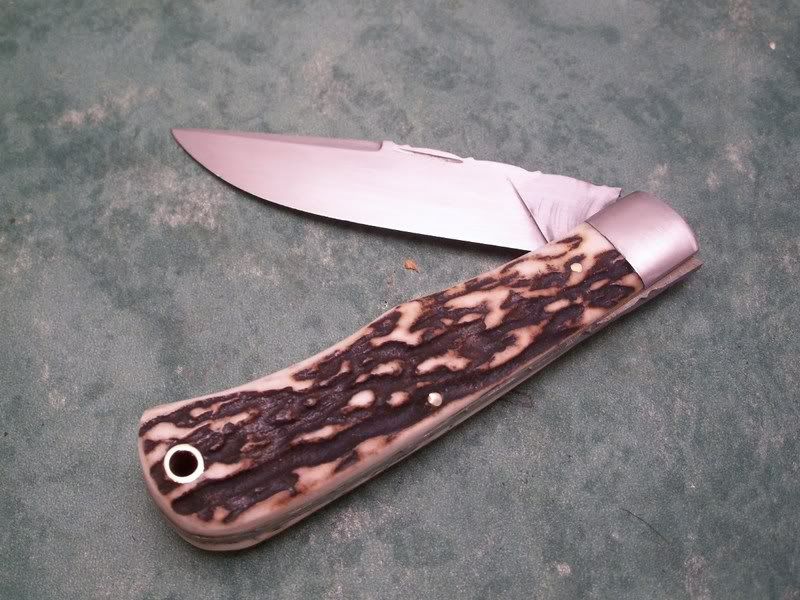

MM those look NICE ! What do you mean by reinforced cut off wheel ?

You must have been posting at the same time i was.After i click,d submit i saw your post

User avatar
muskrat man
Posts: 5206
Joined: Fri Jun 30, 2006 4:04 am
Location: Ohio
Contact:

Re: How to cut a nail nick ??

Postby muskrat man » Mon Feb 02, 2009 11:24 pm

thanks. they are the black dremel cut off wheels. they are reinforced with fiberglass, they are thicker and tougher than the thin brown ones that snap if you look at them funny.
http://www.lowes.com/lowes/lkn?action=p ... el%201-1/4"%20Fiberglass-Reinforced%20Cut-Off%20Wheel&semsite=yssp&sembrand=n&semcatg=Unassigned&semsubcatg=12709&semkeyword=Dremel+1-1/4"+Fiberglass-Reinforced+Cut-Off+Wheel
Those who would sacrifice liberty for security deserve neither and will lose both.

Custom knives, repair, restoration & embellishment
Certified Hubertus, Taylor, & Schrade repairman past and present
http://www.muskratmanknives.com

FOG
Posts: 65
Joined: Mon Feb 02, 2009 3:24 am

Re: How to cut a nail nick ??

Postby FOG » Tue Feb 03, 2009 2:03 am

Thank you MM. In fact i believe thats what i have that i tested today.I would have liked it to be a lil thinner tho

2 speed
Posts: 39
Joined: Sun Jul 13, 2008 10:51 pm
Location: Huntington Beach Ca.

Re: How to cut a nail nick ??

Postby 2 speed » Tue Feb 03, 2009 4:20 am

Cutting a clean nailmark has been one of the most difficult aspects of folder making for me. No matter how much I practiced with a flex shaft tool I would occasionally have them get away from me and ruin my blanked blades and it was back to square one. A big ugly nail mark ruins the apperance of a blade no matter how well it is ground and swaged (imo). I finally buckled down and bought a 1/2 ton arbor press and hand made a stamping die out of O1 to press/stamp the mark. What used to be an operation that would make my hands tremble and sweat bead on my forehead is now done in a few minutes. I still have to go in with a small dressed down Cratex wheel and do a little deepening of the mark by hand but the results are very nice!. I do'nt know if you want to go this route but I can post some pics if you're interested.

FOG
Posts: 65
Joined: Mon Feb 02, 2009 3:24 am

Re: How to cut a nail nick ??

Postby FOG » Tue Feb 03, 2009 5:51 am

That press is a good idea. Please post some pics id love to see them, and if you can some of the press and the die as well. Thanks,Bryce
